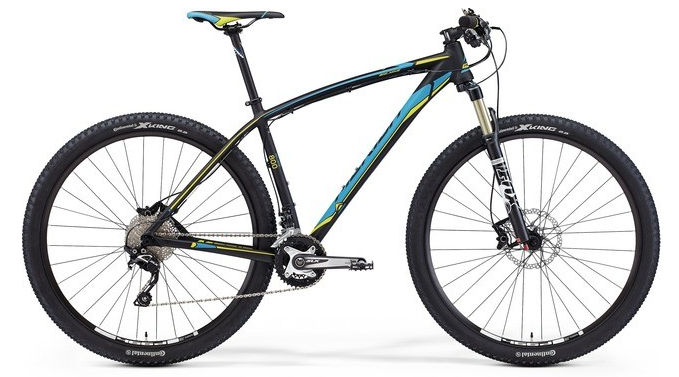

2015 Merida Big Nine geometry
Full frame geometry for the 2015 Merida Big Nine, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15 | 614 | 375 | 72 | 70 | 100 | 560 | 380 | 697 | 60 | 628 | 445 | 1066 |
| 17 | 623 | 392 | 72 | 70 | 110 | 580 | 440 | 748 | 60 | 648 | 445 | 1086 |
| 19 | 635 | 408 | 72 | 70.5 | 120 | 600 | 480 | 783 | 60 | 672 | 445 | 1110 |
| 21 | 644 | 425 | 72 | 70.5 | 130 | 620 | 530 | 821 | 60 | 683 | 445 | 1121 |
| 23 | 654 | 442 | 72 | 70.5 | 140 | 640 | 530 | 863 | 60 | 704 | 445 | 1142 |
All measurements in millimetres unless marked (°) for angles.
