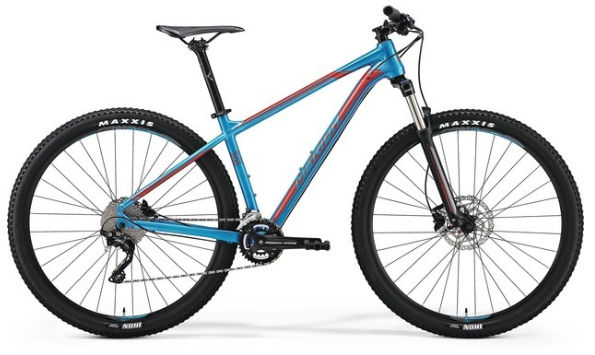

2017 Merida Big Nine TFS MKII geometry
Full frame geometry for the 2017 Merida Big Nine TFS MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 614 | 382 | 73 | 70 | 100 | 570 | 370 | 679 | 60 | 636 | 440 | 1069 |
| M | 628 | 398 | 73 | 70 | 115 | 590 | 430 | 727 | 60 | 657 | 440 | 1090 |
| L | 642 | 414 | 73 | 70 | 130 | 610 | 470 | 763 | 60 | 677 | 440 | 1110 |
| XL | 656 | 429 | 73 | 70 | 145 | 630 | 510 | 800 | 60 | 698 | 440 | 1131 |
| XXL | 670 | 445 | 73 | 70 | 160 | 650 | 560 | 843 | 60 | 719 | 440 | 1152 |
All measurements in millimetres unless marked (°) for angles.
