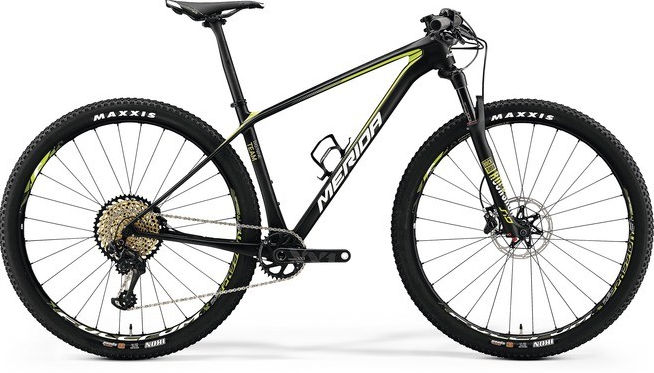

2017 Merida Big.Nine/Seven CF5 geometry
Full frame geometry for the 2017 Merida Big.Nine/Seven CF5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 13.5 | 567 | 397 | 73.5 | 69 | 105 | 565 | 342 | 667 | 65 | 656 | 423 | 1071 |
| 15 | 617 | 402 | 73.5 | 70 | 95 | 585 | 380 | 681 | 65 | 655 | 433 | 1080 |
| 17 | 622 | 421 | 73.5 | 70 | 100 | 605 | 444 | 744 | 65 | 676 | 433 | 1101 |
| 19 | 631 | 438 | 73.5 | 70 | 110 | 625 | 483 | 778 | 65 | 696 | 433 | 1121 |
| 21 | 645 | 454 | 73.5 | 70 | 125 | 645 | 532 | 819 | 65 | 717 | 433 | 1142 |
All measurements in millimetres unless marked (°) for angles.
