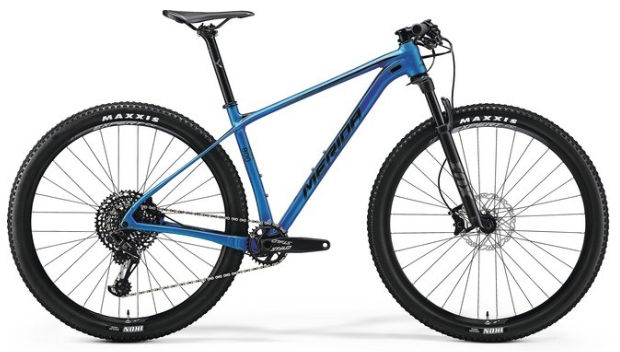

2017 Merida Big Nine Lite geometry
Full frame geometry for the 2017 Merida Big Nine Lite, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 614 | 403 | 73.5 | 70 | 95 | 585 | 382 | 688 | 65 | 655 | 433 | 1080 |
| M | 619 | 422 | 73.5 | 70 | 100 | 605 | 444 | 740 | 65 | 675 | 433 | 1100 |
| L | 628 | 439 | 73.5 | 70 | 110 | 625 | 483 | 771 | 65 | 696 | 433 | 1121 |
| XL | 642 | 455 | 73.5 | 70 | 125 | 645 | 532 | 816 | 65 | 717 | 433 | 1142 |
| XXL | 661 | 469 | 73.5 | 70 | 145 | 665 | 584 | 859 | 65 | 738 | 433 | 1163 |
All measurements in millimetres unless marked (°) for angles.
