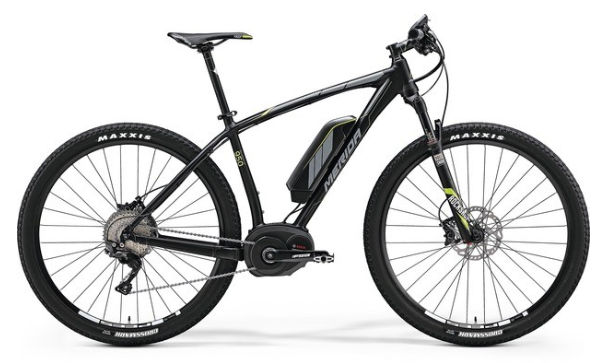

2017 Merida Big.Nine E-Lite geometry
Full frame geometry for the 2017 Merida Big.Nine E-Lite, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15 | 628 | 376 | 72 | 70 | 110 | 580 | 380 | 700 | 65 | 633 | 470 | 1095 |
| 17 | 628 | 396 | 72 | 70 | 110 | 600 | 445 | 758 | 65 | 653 | 470 | 1115 |
| 19 | 630 | 415 | 72 | 70.5 | 110 | 620 | 483 | 790 | 65 | 668 | 470 | 1130 |
| 21 | 640 | 434 | 72 | 70.5 | 120 | 642 | 532 | 831 | 65 | 690 | 470 | 1152 |
All measurements in millimetres unless marked (°) for angles.
