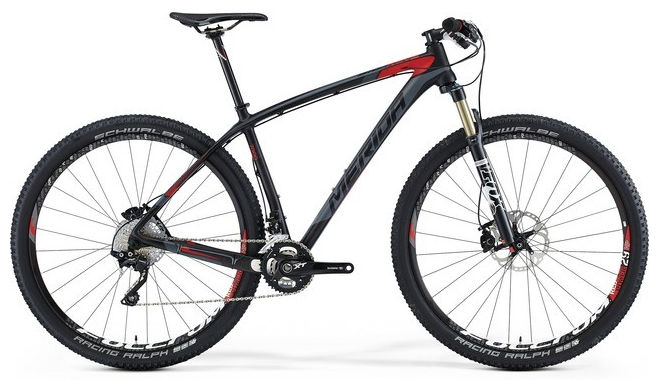

2015 Merida Big Nine CF3 MKI geometry
Full frame geometry for the 2015 Merida Big Nine CF3 MKI, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15 | 617 | 395 | 71.5 | 70 | 95 | 580 | 380 | 764 | 65 | 648 | 440 | 1080 |
| 17 | 631 | 397 | 70.5 | 70 | 110 | 599 | 444 | 815 | 65 | 655 | 440 | 1087 |
| 19 | 633 | 416 | 70.5 | 70.5 | 110 | 619 | 483 | 857 | 65 | 670 | 440 | 1102 |
| 21 | 643 | 436 | 70.5 | 70.5 | 120 | 642 | 532 | 898 | 65 | 693 | 440 | 1125 |
| 23 | 661 | 438 | 70.5 | 70.5 | 140 | 650 | 584 | 934 | 65 | 701 | 440 | 1133 |
All measurements in millimetres unless marked (°) for angles.
