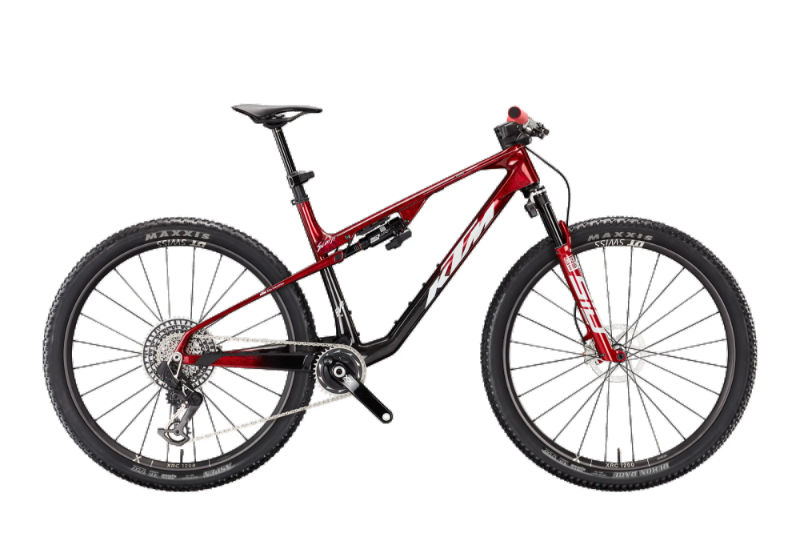

2026 KTM Scarp geometry
Full frame geometry for the 2026 KTM Scarp, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 38 | 588 | 434 | 75 | 67 | 95 | 591 | 380 | 799 | 42 | 435 | 1146 |
| 43 | 597 | 452 | 75 | 67 | 105 | 611 | 430 | 803 | 42 | 435 | 1168 |
| 48 | 607 | 469 | 75 | 67 | 115 | 631 | 480 | 807 | 42 | 435 | 1189 |
| 53 | 618 | 487 | 75 | 67 | 125 | 651 | 530 | 813 | 42 | 435 | 1211 |
All measurements in millimetres unless marked (°) for angles.
