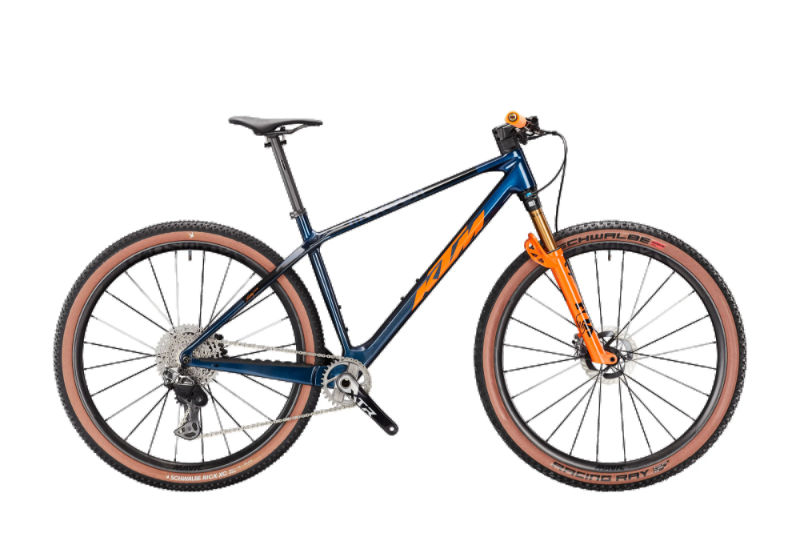

2026 KTM Myroon geometry
Full frame geometry for the 2026 KTM Myroon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 38 | 594 | 425 | 74.5 | 69.5 | 90 | 590 | 380 | 761 | 70 | 430 | 1092 |
| 43 | 604 | 443 | 74.5 | 69.5 | 100 | 610 | 430 | 775 | 70 | 430 | 1113 |
| 48 | 613 | 460 | 74.5 | 69.5 | 110 | 630 | 480 | 803 | 70 | 430 | 1134 |
| 53 | 622 | 477 | 74.5 | 69.5 | 120 | 650 | 530 | 832 | 70 | 430 | 1155 |
All measurements in millimetres unless marked (°) for angles.
