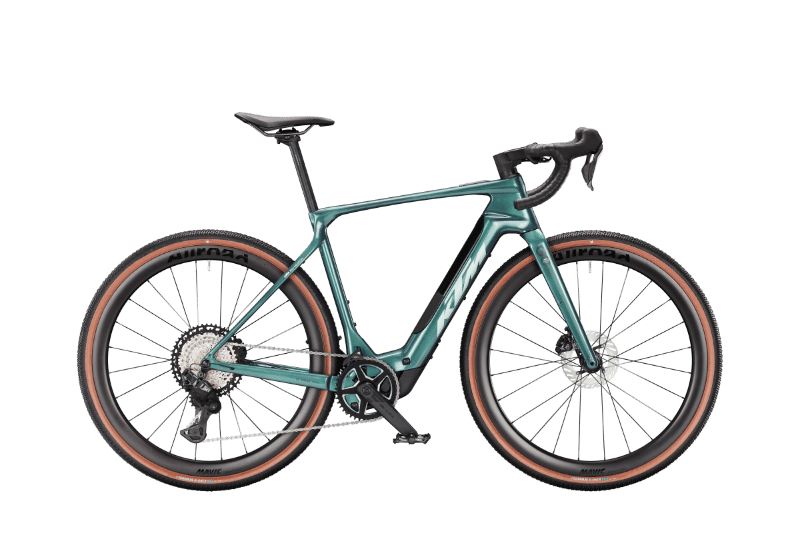

2026 KTM Macina Gravelator SX geometry
Full frame geometry for the 2026 KTM Macina Gravelator SX, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 552.3 | 361.6 | 74 | 69 | 140 | 520 | 460 | 777 | 72 | 435 | 1021.1 |
| S | 556.3 | 380.5 | 74 | 70 | 140 | 540 | 475 | 786 | 72 | 435 | 1031.5 |
| M | 569.5 | 391.3 | 73.5 | 71 | 150 | 560 | 505 | 806 | 72 | 435 | 1037.1 |
| L | 578.9 | 402.9 | 73 | 71 | 160 | 580 | 525 | 820 | 72 | 435 | 1052 |
| XL | 593.2 | 418.7 | 73 | 71 | 175 | 600 | 545 | 837 | 72 | 435 | 1072.6 |
All measurements in millimetres unless marked (°) for angles.
