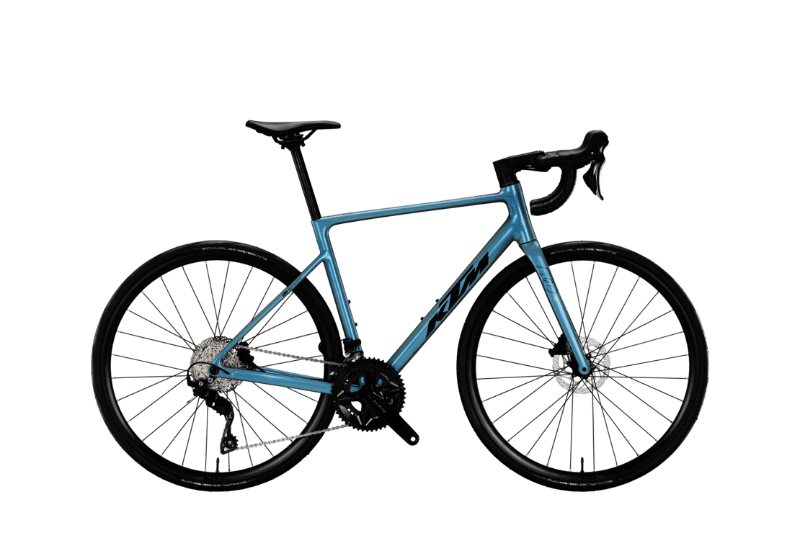

2026 KTM Revelator 10 geometry
Full frame geometry for the 2026 KTM Revelator 10, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 531.7 | 362.5 | 74.5 | 71 | 130 | 510 | 440 | 732 | 72 | 420 | 980.1 |
| S | 549.5 | 372.4 | 74 | 72 | 145 | 530 | 470 | 756 | 72 | 420 | 986.6 |
| M | 563.7 | 383 | 73.5 | 72 | 160 | 550 | 500 | 779 | 72 | 420 | 1001.8 |
| L | 573 | 387.8 | 73 | 72.5 | 170 | 563 | 520 | 795 | 70 | 420 | 1005.6 |
| XL | 580.7 | 392.9 | 72.5 | 72.5 | 180 | 576 | 540 | 811 | 68 | 420 | 1014.1 |
All measurements in millimetres unless marked (°) for angles.
