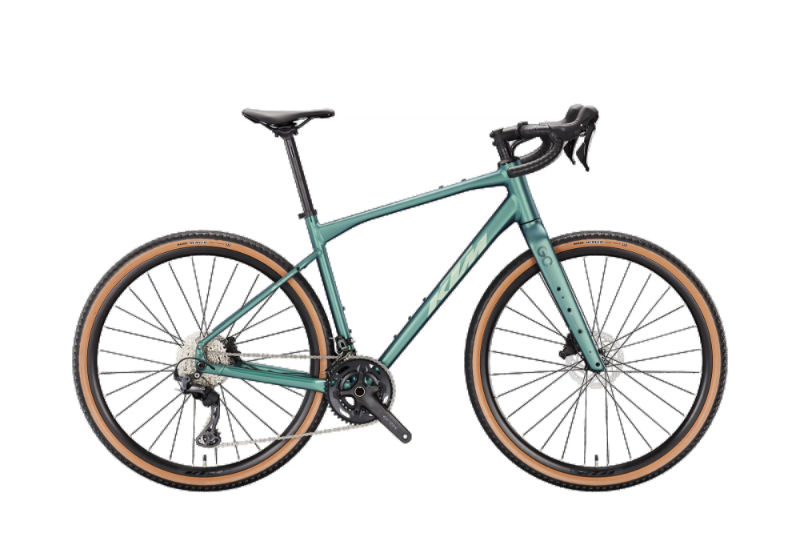

2026 KTM Gravelator 10 geometry
Full frame geometry for the 2026 KTM Gravelator 10, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 49 | 577.4 | 374.4 | 74 | 70 | 130 | 540 | 450 | 761 | 75 | 430 | 1028.6 |
| 52 | 593.5 | 389.8 | 74 | 70.5 | 145 | 560 | 470 | 778 | 75 | 430 | 1044.6 |
| 55 | 612.4 | 404.4 | 74 | 70.5 | 165 | 580 | 500 | 802 | 75 | 430 | 1065.8 |
| 57 | 621.8 | 421.7 | 74 | 70.5 | 175 | 600 | 520 | 816 | 75 | 430 | 1086.5 |
| 59 | 635.9 | 437.7 | 74 | 70.5 | 190 | 620 | 540 | 832 | 75 | 430 | 1107.4 |
All measurements in millimetres unless marked (°) for angles.
