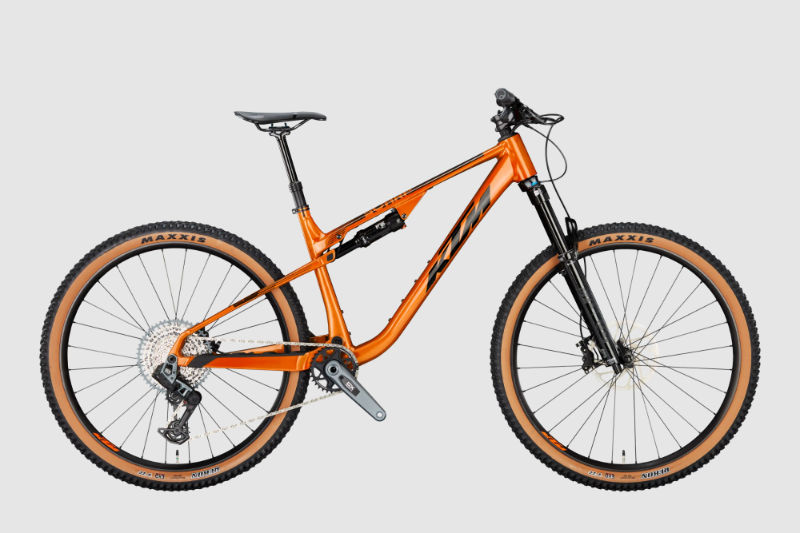

2026 KTM Scarp LT geometry
Full frame geometry for the 2026 KTM Scarp LT, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 38 | 611 | 443 | 76.5 | 65.5 | 100 | 590 | 380 | 814 | 33 | 435 | 1189 |
| 43 | 620 | 461 | 76.5 | 65.5 | 110 | 610 | 400 | 821 | 33 | 435 | 1211 |
| 48 | 629 | 479 | 76.5 | 65.5 | 120 | 630 | 450 | 826 | 33 | 435 | 1233 |
| 53 | 638 | 497 | 76.5 | 65.5 | 130 | 650 | 480 | 830 | 33 | 435 | 1255 |
All measurements in millimetres unless marked (°) for angles.
