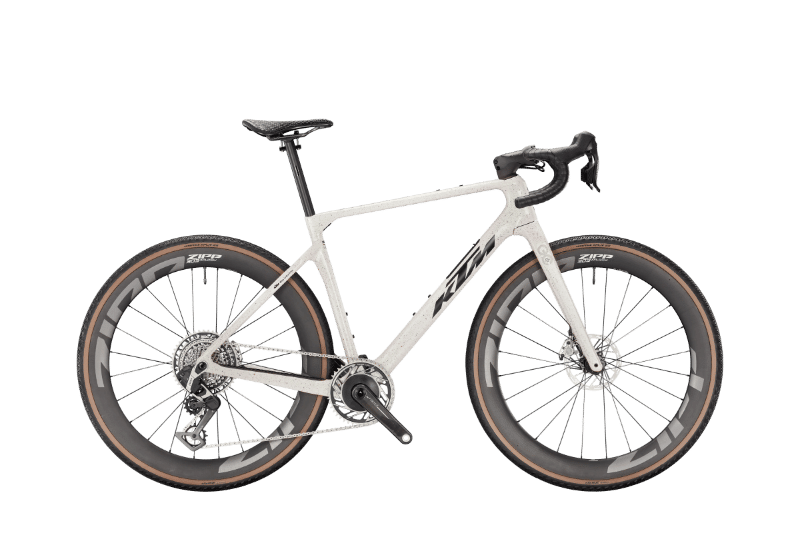

2026 KTM Gravelator Carbon geometry
Full frame geometry for the 2026 KTM Gravelator Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 552 | 377 | 74.5 | 70 | 105 | 530 | 440 | 773 | 75 | 430 | 1027 |
| S | 565 | 388 | 74 | 70.5 | 116 | 550 | 470 | 792 | 75 | 430 | 1038 |
| M | 579 | 404 | 74 | 70.5 | 131 | 570 | 500 | 814 | 75 | 430 | 1059 |
| L | 598 | 408 | 73.5 | 70.5 | 151 | 585 | 520 | 832 | 75 | 430 | 1069 |
| XL | 619 | 411 | 73 | 71.1 | 171 | 600 | 540 | 850 | 75 | 430 | 1073 |
All measurements in millimetres unless marked (°) for angles.
