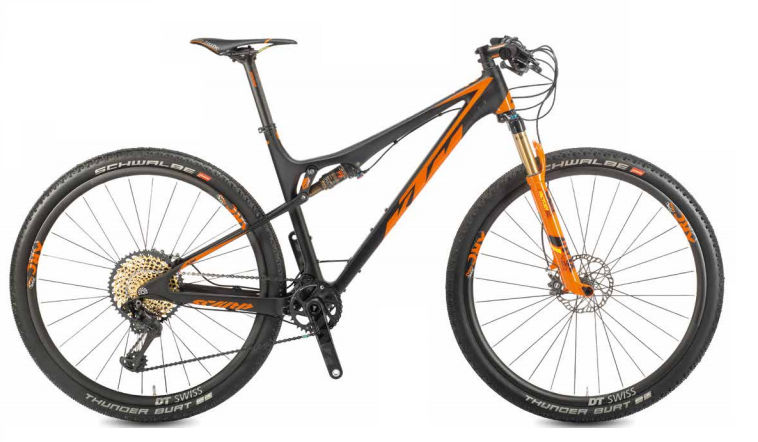

2018 KTM Scarp geometry
Full frame geometry for the 2018 KTM Scarp, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 43 | 603 | 433 | 74.5 | 70 | 105 | 600 | 45 | 441 | 1129 |
| 48 | 612 | 460 | 74.5 | 70 | 115 | 620 | 45 | 441 | 1149 |
| 53 | 621 | 468 | 74.5 | 70 | 125 | 640 | 45 | 441 | 1170 |
All measurements in millimetres unless marked (°) for angles.
