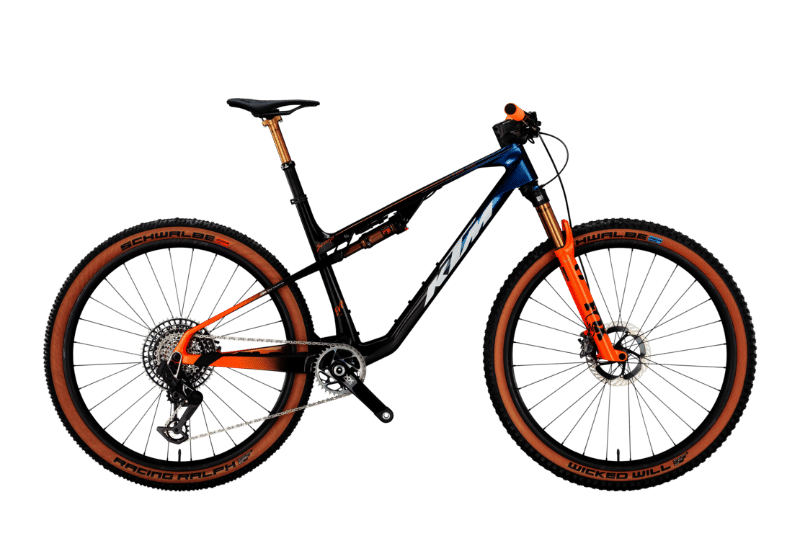

2026 KTM Scarp MT geometry
Full frame geometry for the 2026 KTM Scarp MT, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 38 | 593 | 428 | 74.4 | 66.4 | 95 | 593 | 380 | 805 | 37 | 435 | 1152 |
| 43 | 602 | 445 | 74.4 | 66.4 | 105 | 613 | 430 | 810 | 37 | 435 | 1173 |
| 48 | 612 | 463 | 74.4 | 66.4 | 115 | 633 | 480 | 815 | 37 | 435 | 1195 |
| 53 | 621 | 480 | 74.4 | 66.4 | 125 | 653 | 530 | 820 | 37 | 435 | 1216 |
All measurements in millimetres unless marked (°) for angles.
