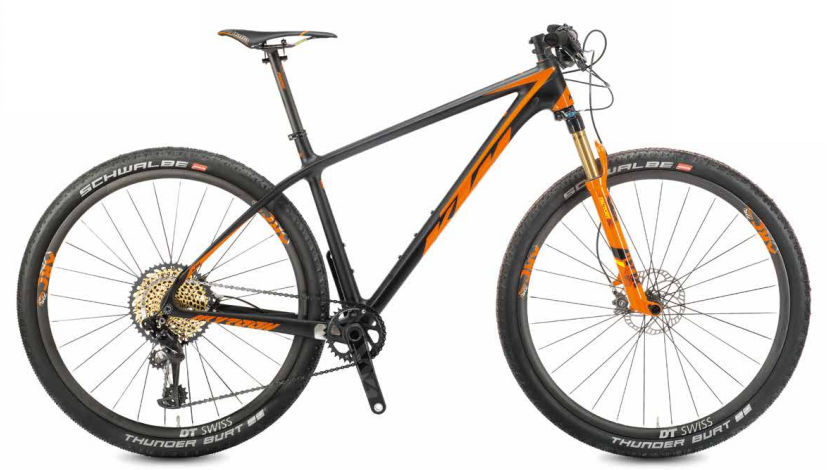

2018 KTM Myroon geometry
Full frame geometry for the 2018 KTM Myroon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 38 | 599 | 414 | 74.5 | 71 | 95 | 580 | 761 | 70 | 430 | 1074 |
| 43 | 608 | 431 | 74.5 | 71 | 105 | 600 | 772 | 70 | 430 | 1095 |
| 48 | 618 | 449 | 74.5 | 71 | 115 | 620 | 803 | 70 | 430 | 1116 |
| 53 | 627 | 466 | 74.5 | 71 | 125 | 640 | 832 | 70 | 430 | 1136 |
All measurements in millimetres unless marked (°) for angles.
