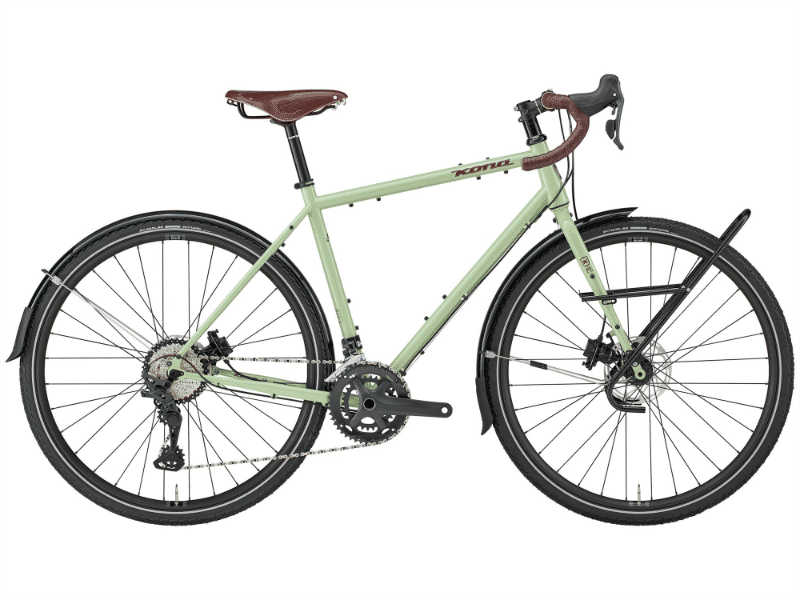

2026 Kona Sutra geometry
Full frame geometry for the 2026 Kona Sutra, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 551 | 375 | 75 | 70.5 | 105 | 523 | 480 | 752 | 74 | 602 | 445 | 1036 | 50 |
| 50 | 570 | 380 | 74.5 | 70.5 | 125 | 538 | 500 | 770 | 74 | 613 | 445 | 1047 | 50 |
| 52 | 591 | 385 | 74 | 70.5 | 150 | 555 | 520 | 794 | 72 | 626 | 445 | 1061 | 50 |
| 54 | 610 | 390 | 73.5 | 70.5 | 170 | 571 | 540 | 817 | 72 | 638 | 445 | 1073 | 50 |
| 56 | 632 | 395 | 73 | 70.5 | 195 | 588 | 560 | 835 | 70 | 651 | 445 | 1086 | 50 |
| 58 | 651 | 400 | 72.5 | 70.5 | 215 | 605 | 580 | 854 | 70 | 662 | 445 | 1098 | 50 |
All measurements in millimetres unless marked (°) for angles.
