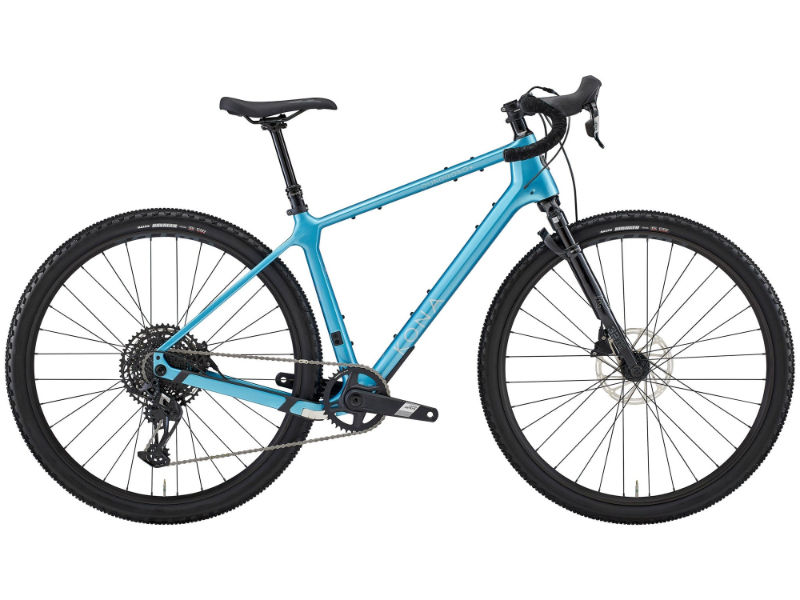

2026 Kona Ouroboros CR geometry
Full frame geometry for the 2026 Kona Ouroboros CR, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 566 | 372 | 74.2 | 68.7 | 116 | 532 | 410 | 725 | 69 | 624 | 445 | 1060 | 51 |
| 50 | 581 | 377 | 73.7 | 68.7 | 132 | 547 | 410 | 730 | 69 | 635 | 445 | 1071 | 51 |
| 52 | 598 | 382 | 73.2 | 68.7 | 148 | 559 | 455 | 769 | 69 | 646 | 445 | 1082 | 51 |
| 54 | 616 | 386 | 72.7 | 68.7 | 172 | 578 | 455 | 777 | 66 | 659 | 445 | 1096 | 51 |
| 56 | 636 | 391 | 72.2 | 68.7 | 193 | 595 | 500 | 814 | 66 | 671 | 445 | 1108 | 51 |
| 58 | 666 | 396 | 71.7 | 68.7 | 225 | 616 | 535 | 848 | 66 | 687 | 445 | 1124 | 51 |
All measurements in millimetres unless marked (°) for angles.
