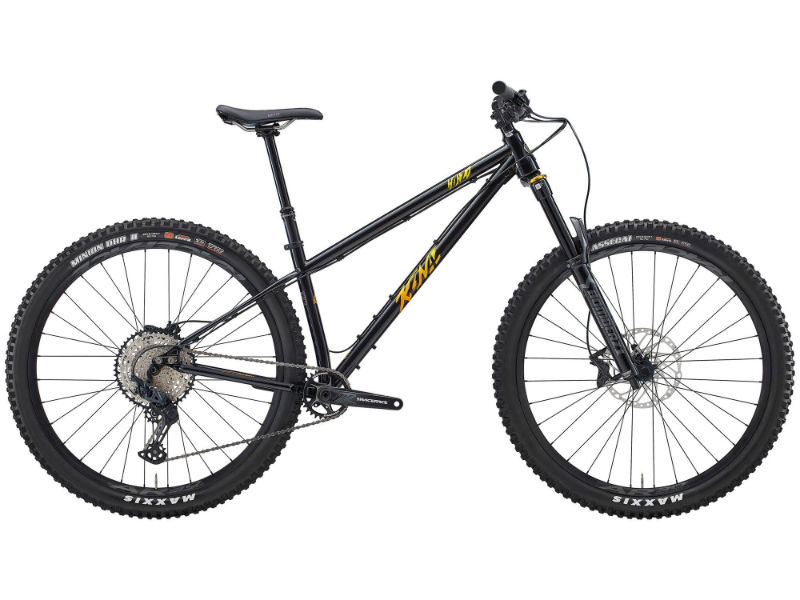

2026 Kona Honzo ESD geometry
Full frame geometry for the 2026 Kona Honzo ESD, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SM | 625 | 440 | 77.5 | 63 | 90 | 578 | 380 | 712 | 62.5 | 776 | 417 | 1186 | 42 |
| MD | 634 | 465 | 77.5 | 63 | 100 | 605 | 380 | 710 | 62.5 | 806 | 417 | 1216 | 42 |
| LG | 643 | 490 | 77.5 | 63 | 110 | 633 | 420 | 709 | 62.5 | 835 | 417 | 1245 | 42 |
| XL | 652 | 525 | 77.5 | 63 | 120 | 670 | 450 | 706 | 62.5 | 875 | 417 | 1285 | 42 |
All measurements in millimetres unless marked (°) for angles.
