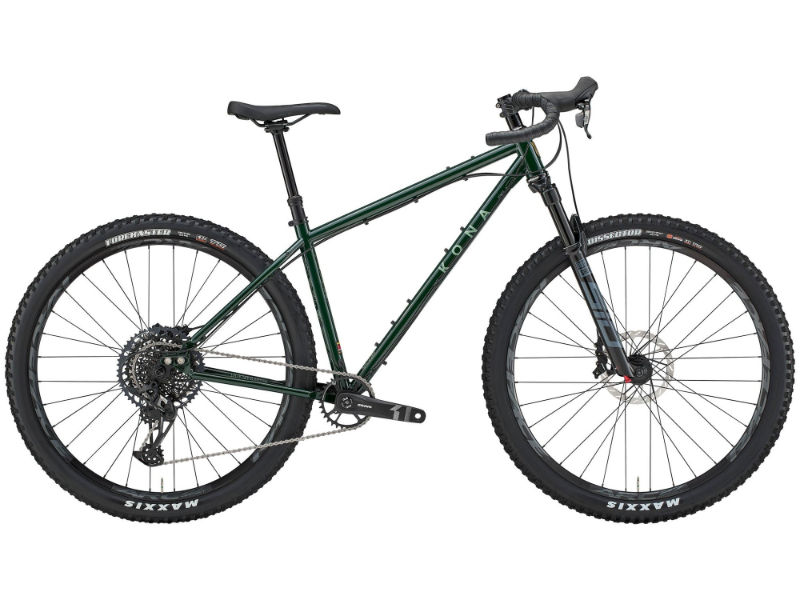

2026 Kona LBF geometry
Full frame geometry for the 2026 Kona LBF, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 623 | 385 | 75 | 67 | 90 | 552 | 400 | 748 | 75 | 670 | 440 | 1099 | 44 |
| M | 642 | 405 | 75 | 67 | 110 | 577 | 445 | 783 | 75 | 697 | 440 | 1127 | 44 |
| L | 660 | 430 | 75 | 67 | 130 | 607 | 490 | 816 | 75 | 730 | 440 | 1160 | 44 |
| XL | 679 | 465 | 75 | 67 | 150 | 647 | 535 | 849 | 75 | 773 | 440 | 1203 | 44 |
All measurements in millimetres unless marked (°) for angles.
