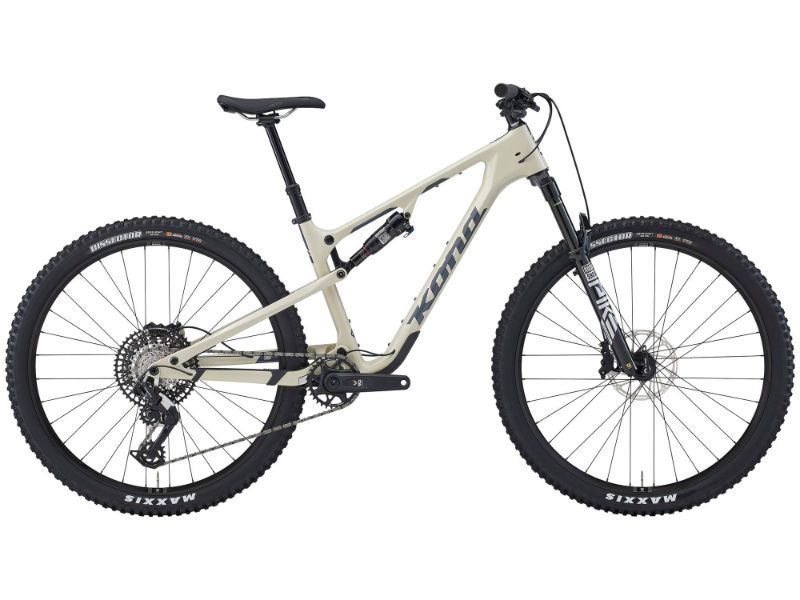

2026 Kona Hei Hei CR geometry
Full frame geometry for the 2026 Kona Hei Hei CR, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 606 | 424 | 76.1 | 66 | 105 | 575 | 380 | 752 | 31 | 730 | 435 | 1163 | 44 |
| M | 620 | 449 | 76 | 66 | 120 | 605 | 410 | 752 | 31 | 761 | 435 | 1194 | 44 |
| L | 630 | 474 | 75.9 | 66 | 130 | 633 | 450 | 753 | 31 | 790 | 435 | 1223 | 44 |
| XL | 639 | 509 | 75.8 | 66 | 140 | 671 | 490 | 755 | 31 | 829 | 435 | 1262 | 44 |
All measurements in millimetres unless marked (°) for angles.
