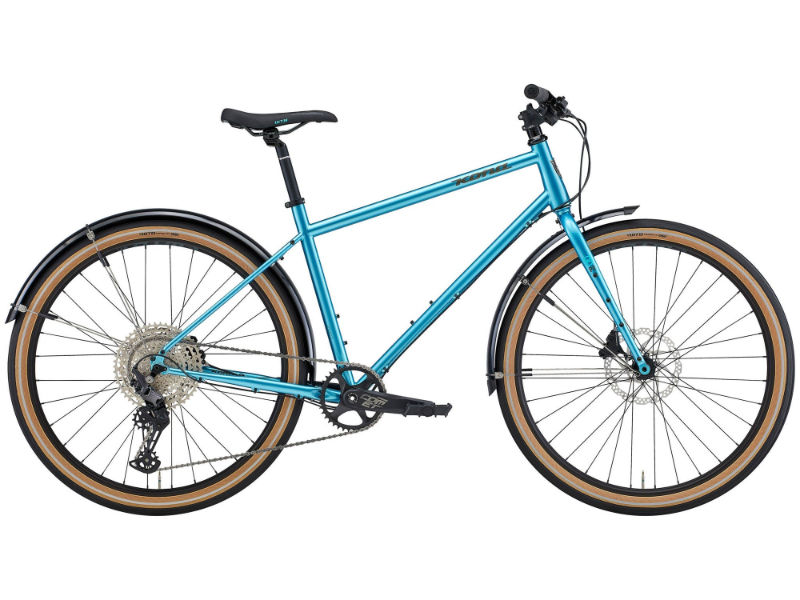

2026 Kona Dr Dew geometry
Full frame geometry for the 2026 Kona Dr Dew, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 550 | 404 | 75 | 70 | 115 | 551 | 420 | 683 | 70 | 636 | 450 | 1076 | 50 |
| M | 587 | 430 | 74 | 70 | 155 | 598 | 470 | 728 | 70 | 675 | 450 | 1116 | 50 |
| L | 625 | 446 | 73 | 70 | 195 | 637 | 520 | 773 | 70 | 705 | 450 | 1146 | 50 |
| XL | 644 | 471 | 72 | 70 | 215 | 680 | 580 | 817 | 70 | 736 | 450 | 1178 | 50 |
All measurements in millimetres unless marked (°) for angles.
