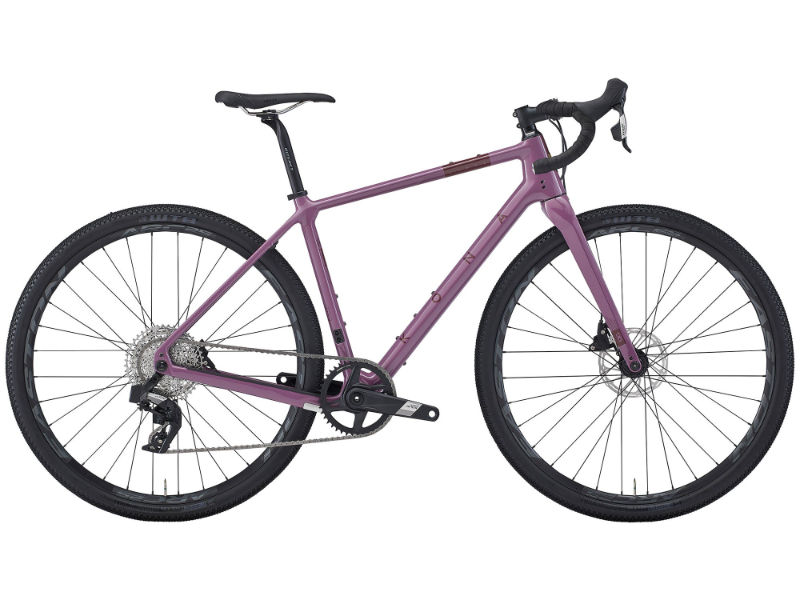

2026 Kona Libre CR geometry
Full frame geometry for the 2026 Kona Libre CR, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 550 | 380 | 75 | 70.5 | 109 | 527 | 440 | 733 | 75 | 606 | 435 | 1030 | 50 |
| 50 | 565 | 385 | 74.5 | 70.5 | 125 | 542 | 460 | 752 | 75 | 616 | 435 | 1040 | 50 |
| 52 | 580 | 390 | 74 | 70.5 | 140 | 556 | 480 | 770 | 75 | 626 | 435 | 1050 | 50 |
| 54 | 600 | 395 | 73.5 | 70.5 | 165 | 573 | 510 | 799 | 72 | 639 | 435 | 1064 | 50 |
| 56 | 620 | 400 | 73 | 70.5 | 186 | 590 | 540 | 825 | 72 | 651 | 435 | 1076 | 50 |
| 58 | 650 | 405 | 72.5 | 70.5 | 218 | 610 | 570 | 855 | 72 | 667 | 435 | 1092 | 50 |
All measurements in millimetres unless marked (°) for angles.
