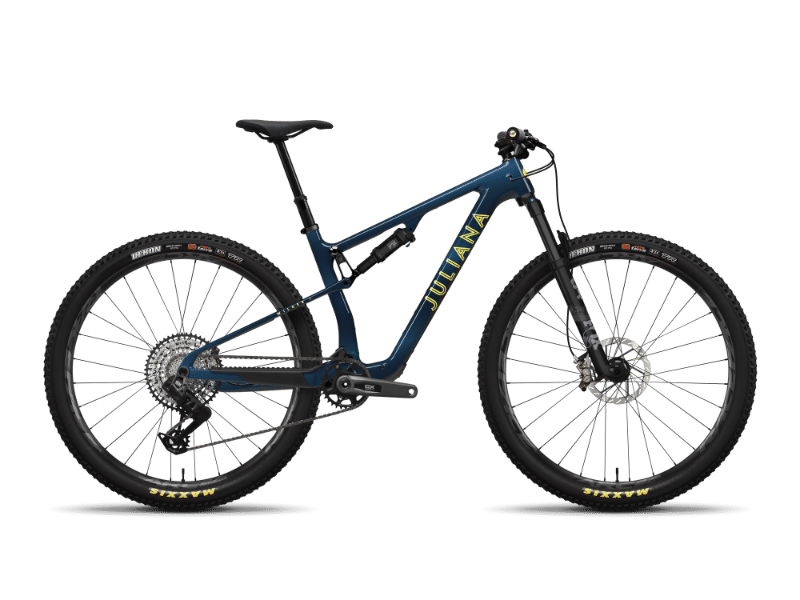

2025 Juliana Wilder geometry
Full frame geometry for the 2025 Juliana Wilder, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 587.4 | 412.3 | 75.1 | 67.1 | 90 | 568.4 | 405 | 743.5 | 32.6 | 695 | 430.8 | 1125.8 | 44 |
| M | 597 | 437.8 | 75 | 67.1 | 100 | 597.3 | 430 | 746.4 | 32.8 | 723.7 | 433.3 | 1157 | 44 |
| L | 606.5 | 457.5 | 74.9 | 67.1 | 110 | 621.4 | 470 | 745.4 | 32.9 | 747.4 | 435.8 | 1183.2 | 44 |
All measurements in millimetres unless marked (°) for angles.
