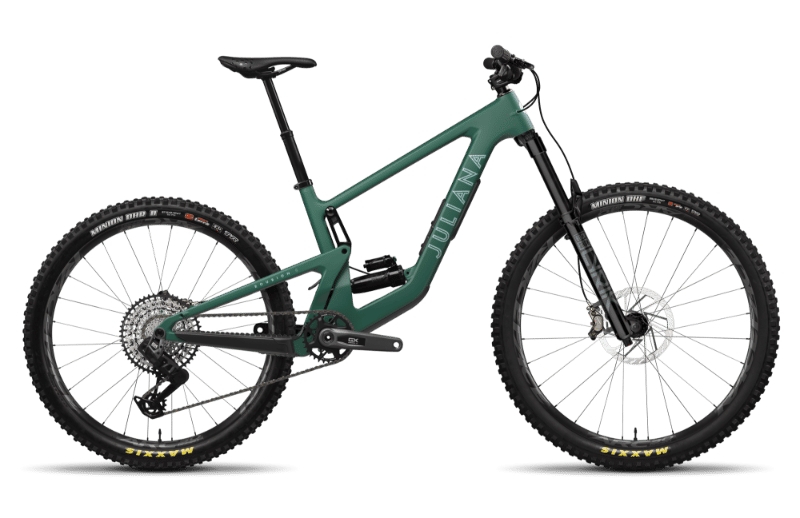

2024 Juliana Roubion geometry
Full frame geometry for the 2024 Juliana Roubion, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 594 | 405 | 77.6 | 64.7 | 110 | 536 | 370 | 701 | 10 | 722 | 427 | 1149 | 37 |
| S | 617 | 430 | 77.2 | 64.7 | 100 | 570 | 380 | 709 | 29 | 757 | 431 | 1188 | 44 |
| M | 626 | 455 | 77.1 | 64.7 | 110 | 599 | 405 | 731 | 29 | 786 | 435 | 1221 | 44 |
All measurements in millimetres unless marked (°) for angles.
