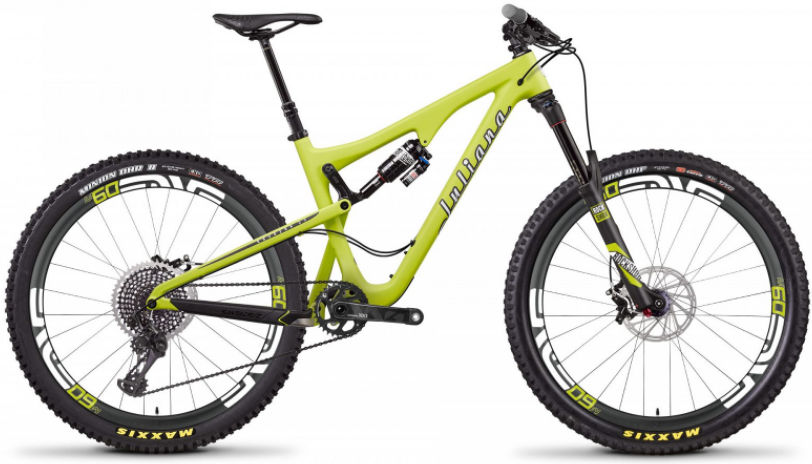

2017 Juliana Roubion MKII geometry
Full frame geometry for the 2017 Juliana Roubion MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 586 | 405 | 74 | 66 | 90 | 573 | 395 | 727 | 433 | 1141 |
| M | 595 | 425 | 74 | 66 | 100 | 596 | 420 | 731 | 433 | 1165 |
| L | 605 | 445 | 74 | 66 | 110 | 618 | 460 | 734 | 433 | 1189 |
All measurements in millimetres unless marked (°) for angles.
