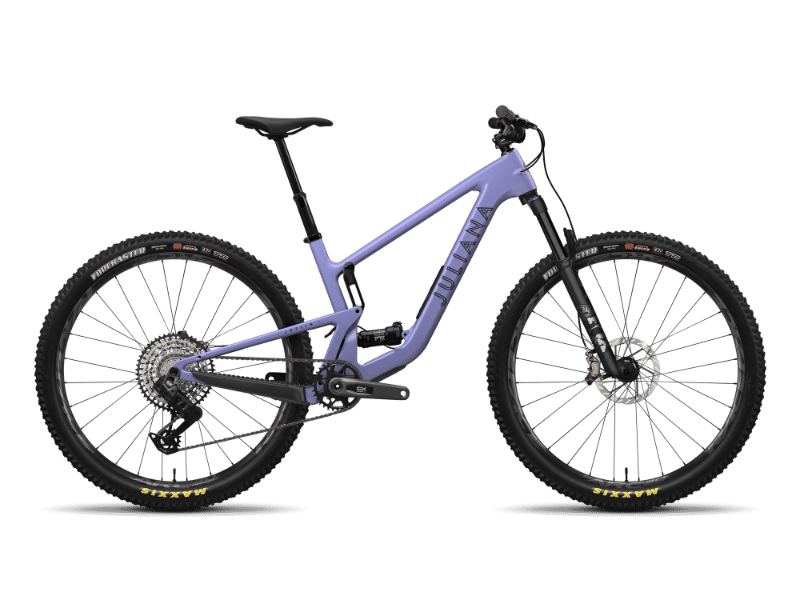

2025 Juliana Joplin geometry
Full frame geometry for the 2025 Juliana Joplin, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 603 | 403 | 75.7 | 65.5 | 95 | 556 | 370 | 676 | 41 | 708 | 431 | 1138 | 44 |
| S | 612 | 428 | 76 | 65.5 | 105 | 580 | 380 | 691 | 41 | 737 | 431 | 1167 | 44 |
| M | 621 | 453 | 76.4 | 65.5 | 115 | 603 | 405 | 693 | 41 | 766 | 434 | 1199 | 44 |
All measurements in millimetres unless marked (°) for angles.
