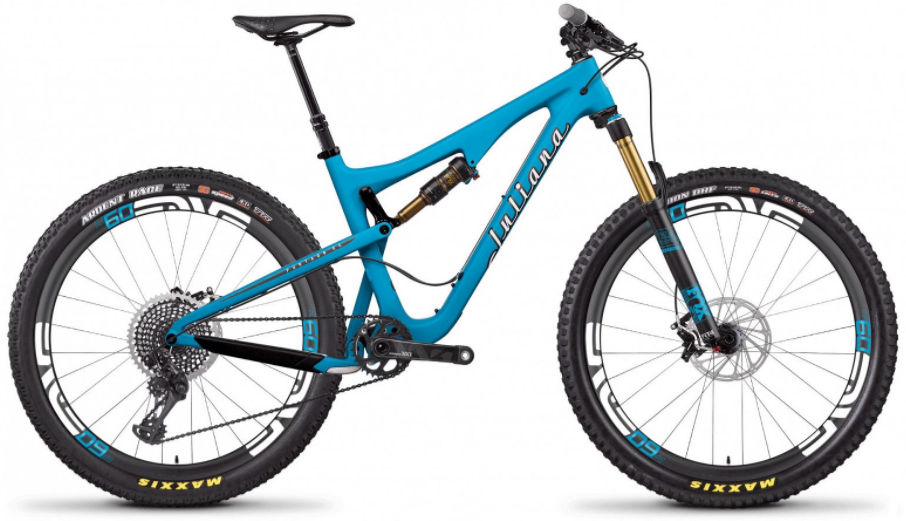

2017 Juliana Furtado MKII geometry
Full frame geometry for the 2017 Juliana Furtado MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| XS | 576 | 390 | 73.8 | 67 | 90 | 558 | 375 | 688 | 426 | 1098 |
| S | 585 | 405 | 74 | 67 | 100 | 576 | 395 | 711 | 425 | 1117 |
| M | 595 | 425 | 74 | 67 | 110 | 598 | 420 | 717 | 425 | 1141 |
| L | 604 | 445 | 74 | 67 | 120 | 621 | 450 | 719 | 425 | 1165 |
All measurements in millimetres unless marked (°) for angles.
