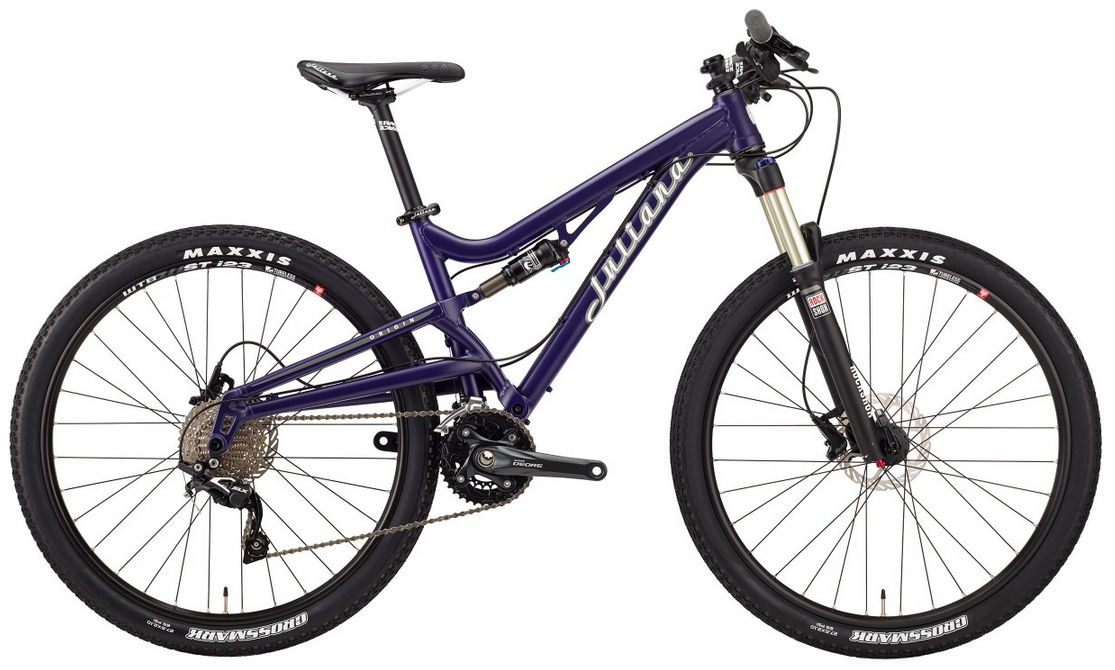

2015 Juliana Origin geometry
Full frame geometry for the 2015 Juliana Origin, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| XS | 547 | 364 | 74 | 69.5 | 90 | 521 | 381 | 689 | 424 | 1015 |
| S | 599 | 387 | 73.5 | 71 | 90 | 564 | 418 | 692 | 444 | 1083 |
| M | 608 | 404 | 73.5 | 71 | 100 | 584 | 445 | 699 | 444 | 1109 |
All measurements in millimetres unless marked (°) for angles.
