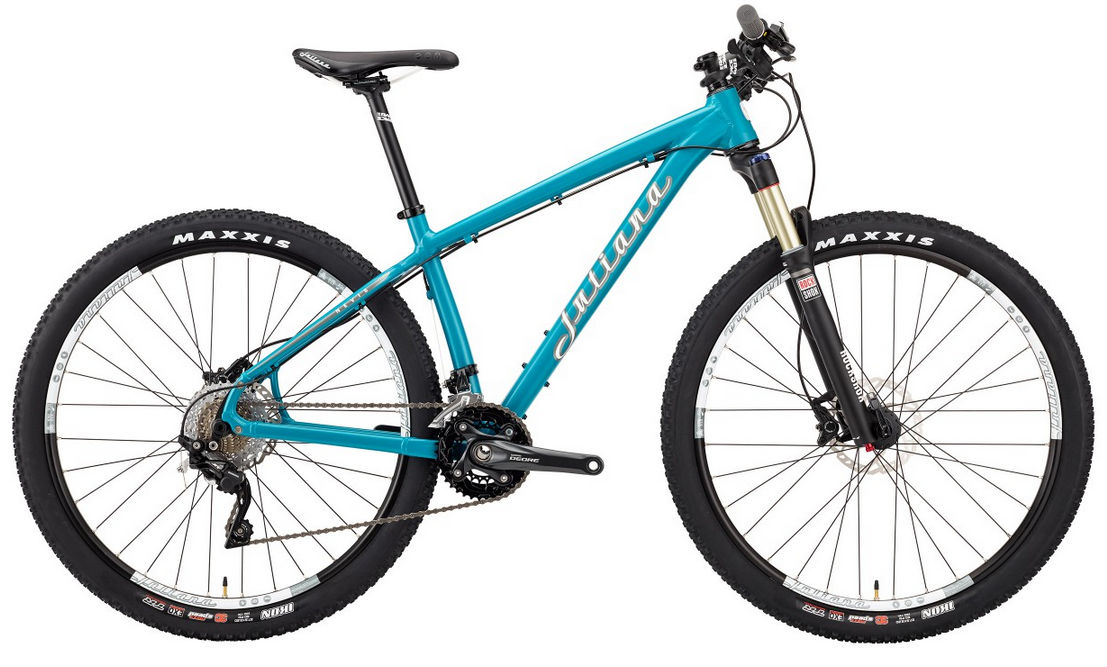

2015 Juliana Nevis geometry
Full frame geometry for the 2015 Juliana Nevis, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 577 | 382 | 72.5 | 69 | 90 | 564 | 407 | 715 | 419 | 1052 |
| XS | 577 | 356 | 72.5 | 69 | 90 | 539 | 356 | 691 | 419 | 1027 |
| M | 586 | 404 | 72.5 | 69 | 100 | 589 | 431 | 734 | 419 | 1078 |
All measurements in millimetres unless marked (°) for angles.
