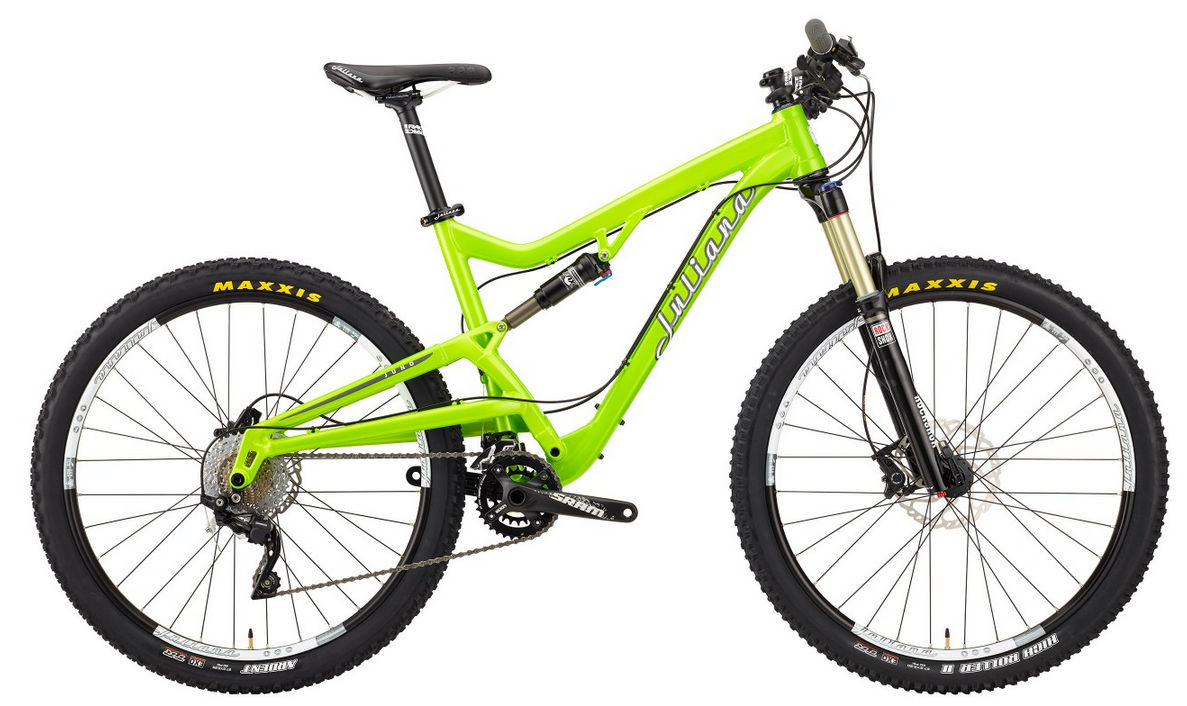

2015 Juliana Juno geometry
Full frame geometry for the 2015 Juliana Juno, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 604 | 368 | 73 | 68 | 90 | 553 | 414 | 730 | 435 | 1086 |
| M | 613 | 397 | 73 | 68 | 100 | 584 | 432 | 735 | 435 | 1118 |
| L | 622 | 419 | 73 | 68 | 110 | 610 | 470 | 736 | 435 | 1145 |
All measurements in millimetres unless marked (°) for angles.
