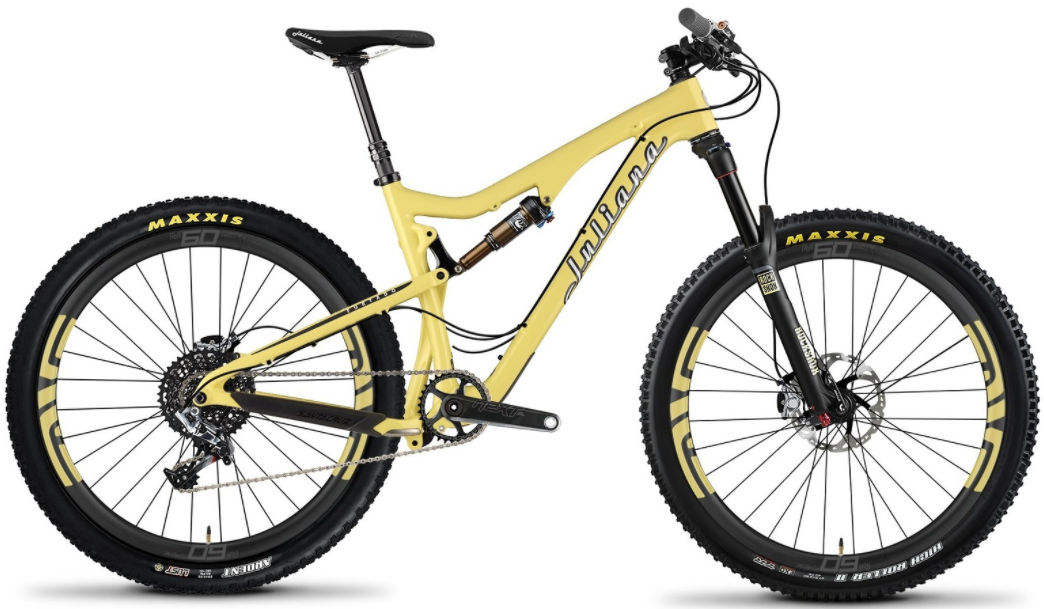

2015 Juliana Furtado MKI geometry
Full frame geometry for the 2015 Juliana Furtado MKI, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 581 | 375 | 73 | 68 | 90 | 553 | 414 | 722 | 435 | 1081 |
| M | 590 | 404 | 73 | 68 | 100 | 584 | 432 | 716 | 435 | 1114 |
| L | 600 | 426 | 73 | 68 | 110 | 610 | 470 | 723 | 435 | 1140 |
All measurements in millimetres unless marked (°) for angles.
