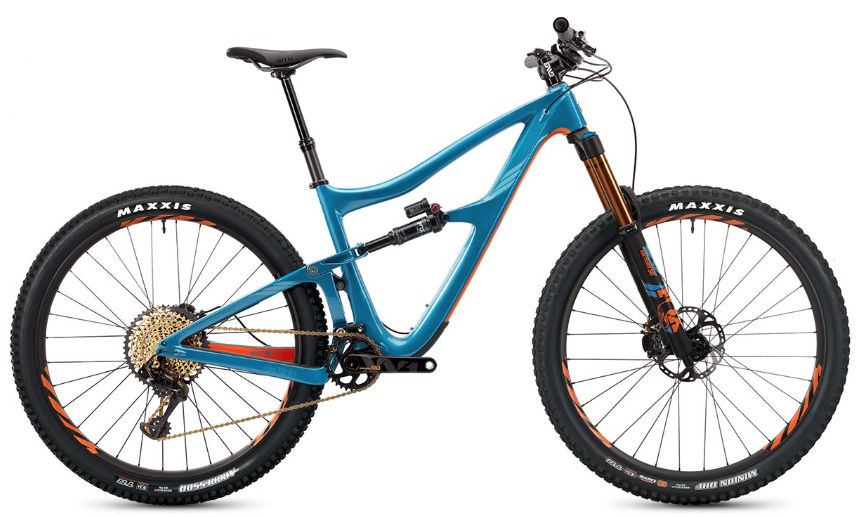

2018 Ibis Ripmo geometry
Full frame geometry for the 2018 Ibis Ripmo, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 613 | 431 | 77 | 65.9 | 90 | 573 | 368 | 705 | 435 | 1177 | 118 |
| M | 620 | 446 | 76 | 65.9 | 100 | 603 | 368 | 750 | 435 | 1190 | 118 |
| L | 629 | 471 | 76 | 65.9 | 110 | 632 | 418 | 750 | 435 | 1220 | 118 |
| XL | 642 | 493 | 76 | 65.9 | 120 | 655 | 470 | 760 | 435 | 1249 | 118 |
All measurements in millimetres unless marked (°) for angles.
