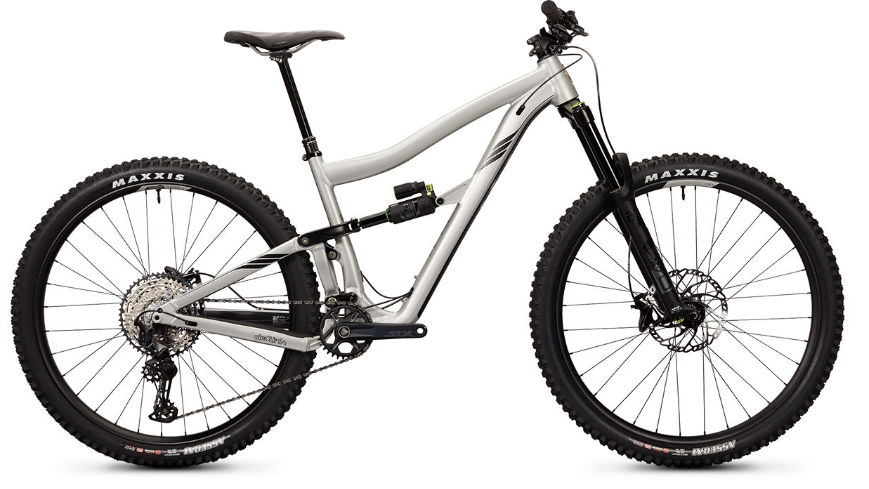

2020 Ibis Ripmo AF geometry
Full frame geometry for the 2020 Ibis Ripmo AF, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 613 | 431 | 77 | 64.9 | 90 | 573 | 355 | 705 | 30 | 752 | 435 | 1185 | 114 |
| M | 620 | 458 | 76 | 64.9 | 100 | 603 | 380 | 750 | 30 | 783 | 435 | 1216 | 114 |
| L | 629 | 475 | 76 | 64.9 | 110 | 632 | 419 | 750 | 30 | 804 | 435 | 1237 | 114 |
| XL | 642 | 495 | 76 | 64.9 | 120 | 655 | 470 | 760 | 30 | 829 | 435 | 1262 | 114 |
All measurements in millimetres unless marked (°) for angles.
