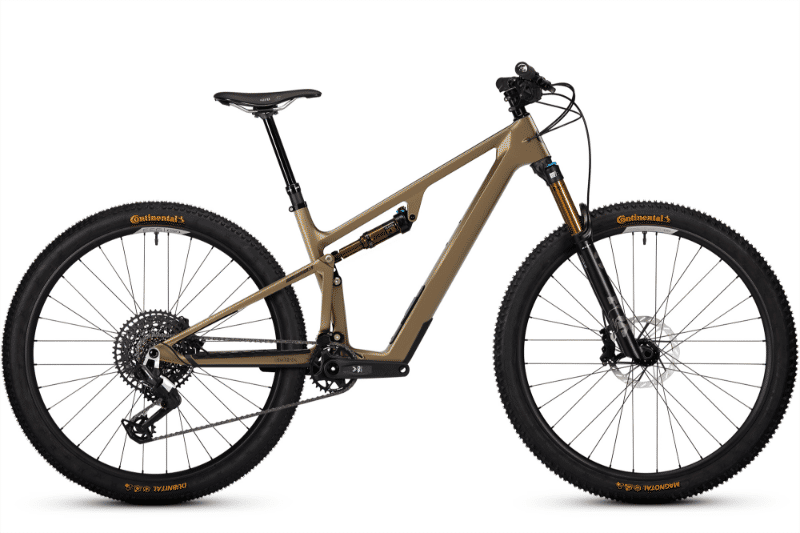

2026 Ibis Ripley SL geometry
Full frame geometry for the 2026 Ibis Ripley SL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 597 | 407 | 74.3 | 66 | 85 | 577 | 377 | 710 | 42 | 432 | 1130 |
| M | 599 | 440 | 74.5 | 66 | 90 | 607 | 403 | 727 | 39 | 434 | 1170 |
| XM | 617 | 463 | 74.8 | 66 | 112 | 632 | 410 | 732 | 36 | 436 | 1201 |
| L | 625 | 484 | 75 | 66 | 125 | 652 | 438 | 737 | 32 | 438 | 1228 |
| XL | 635 | 509 | 75.3 | 66 | 140 | 677 | 470 | 752 | 29 | 440 | 1263 |
All measurements in millimetres unless marked (°) for angles.
