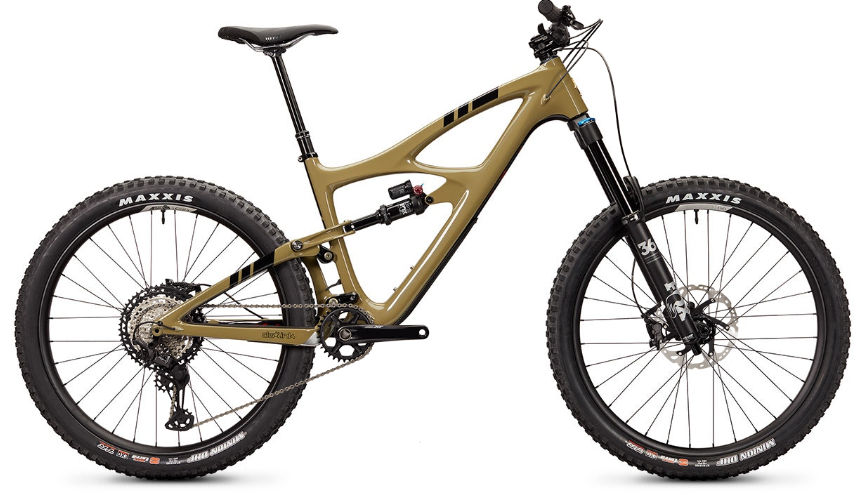

2020 Ibis Mojo HD5 geometry
Full frame geometry for the 2020 Ibis Mojo HD5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 595 | 427 | 76 | 64.2 | 109 | 582 | 356 | 696 | 7 | 754 | 430 | 1184 | 37 | 132 |
| M | 611 | 447 | 76 | 64.2 | 126 | 606 | 368 | 710 | 7 | 781 | 430 | 1211 | 37 | 132 |
| L | 626 | 472 | 76 | 64.2 | 142 | 635 | 419 | 731 | 7 | 813 | 430 | 1243 | 37 | 132 |
| XL | 640 | 503 | 76 | 64.2 | 158 | 669 | 470 | 750 | 7 | 850 | 430 | 1280 | 37 | 132 |
All measurements in millimetres unless marked (°) for angles.
