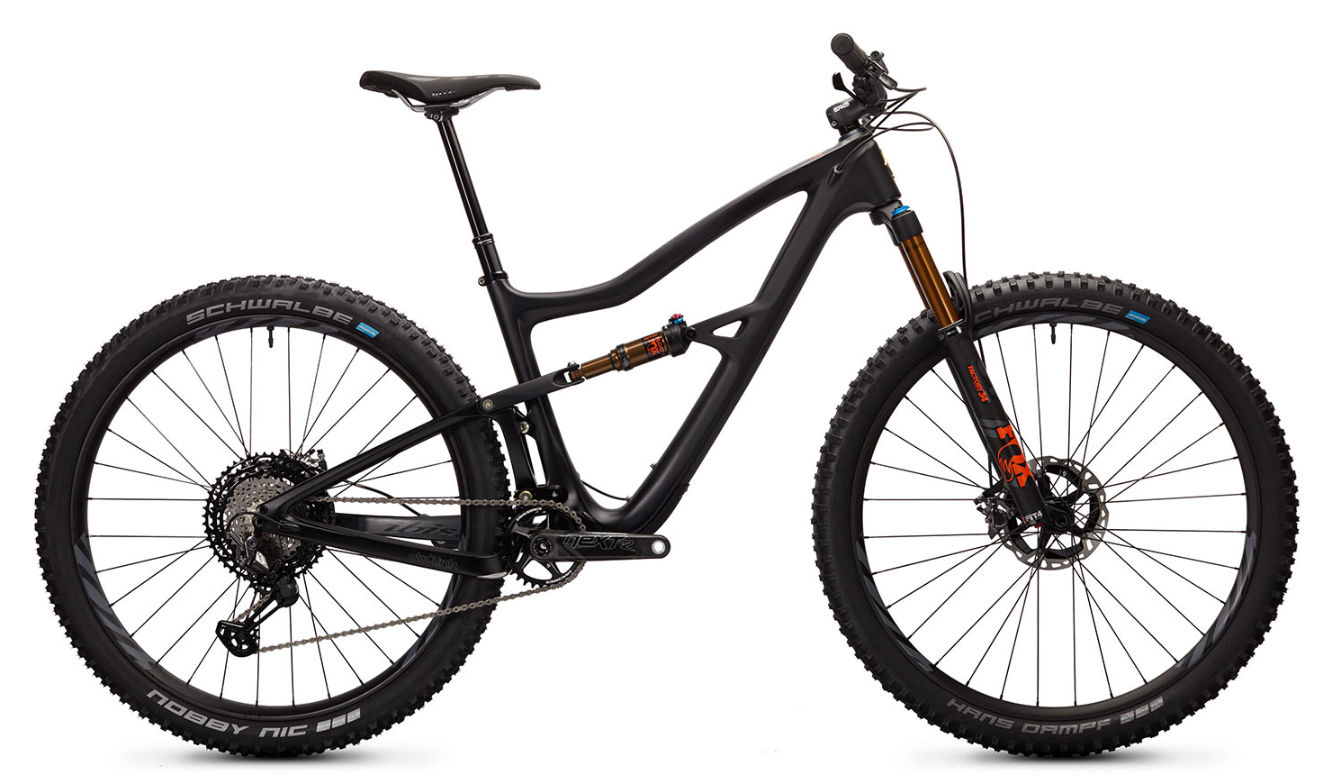

2019 Ibis Ripley V4 geometry
Full frame geometry for the 2019 Ibis Ripley V4, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S | 599 | 425 | 76 | 66.5 | 90 | 574 | 432 | 1147 | 44 |
| M | 613 | 450 | 76 | 66.5 | 105 | 603 | 432 | 1178 | 44 |
| L | 622 | 475 | 76 | 66.5 | 115 | 630 | 432 | 1207 | 44 |
| XL | 631 | 500 | 76 | 66.5 | 125 | 658 | 432 | 1236 | 44 |
All measurements in millimetres unless marked (°) for angles.
