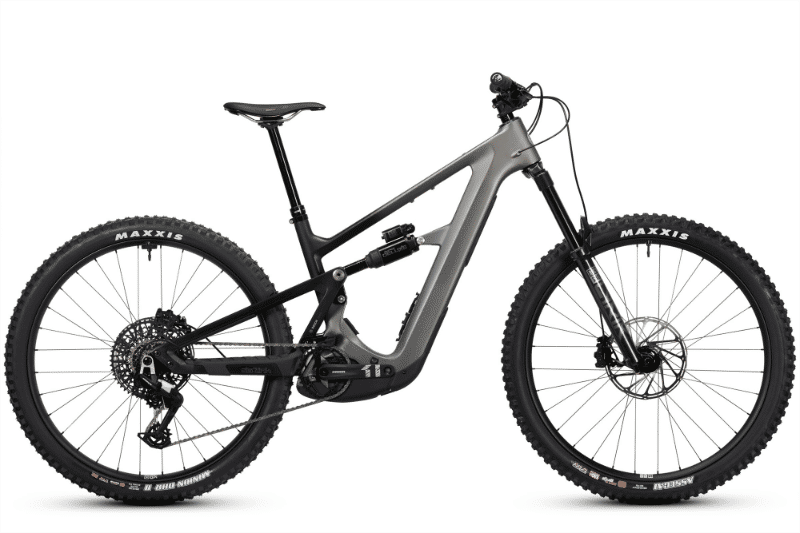

2026 Ibis Oso TR geometry
Full frame geometry for the 2026 Ibis Oso TR, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SM | 619 | 438 | 77 | 63.2 | 99 | 581 | 381 | 697 | 34 | 440 | 1222 |
| MD | 630 | 460 | 77 | 64 | 109 | 605 | 381 | 708 | 31 | 440 | 1241 |
| XM | 638 | 484 | 77.5 | 64 | 121 | 625 | 405 | 736 | 28 | 455 | 1285 |
| LG | 648 | 508 | 78 | 64 | 136 | 646 | 432 | 747 | 25 | 455 | 1315 |
| XL | 660 | 532 | 78.5 | 64 | 152 | 666 | 450 | 763 | 22 | 455 | 1346 |
All measurements in millimetres unless marked (°) for angles.
