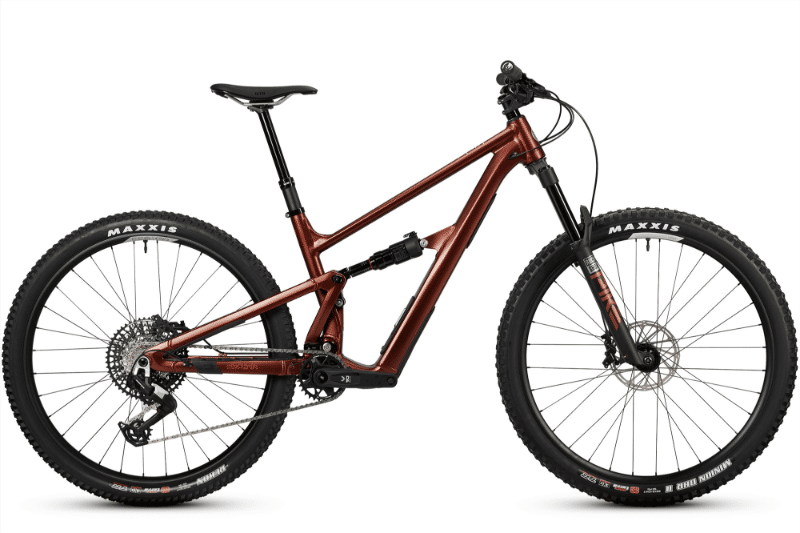

2026 Ibis Ripley AF geometry
Full frame geometry for the 2026 Ibis Ripley AF, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SM | 613 | 440 | 77.4 | 64.9 | 85 | 577 | 395 | 680 | 48 | 436 | 1187 |
| MD | 619 | 460 | 76.9 | 64.9 | 95 | 604 | 400 | 721 | 45 | 436 | 1211 |
| XM | 629 | 483 | 76.9 | 64.9 | 110 | 629 | 415 | 744 | 42 | 437 | 1241 |
| LG | 640 | 511 | 77.4 | 64.9 | 125 | 654 | 457 | 759 | 39 | 440 | 1279 |
| XL | 650 | 545 | 77.9 | 64.9 | 140 | 684 | 477 | 772 | 36 | 442 | 1321 |
All measurements in millimetres unless marked (°) for angles.
