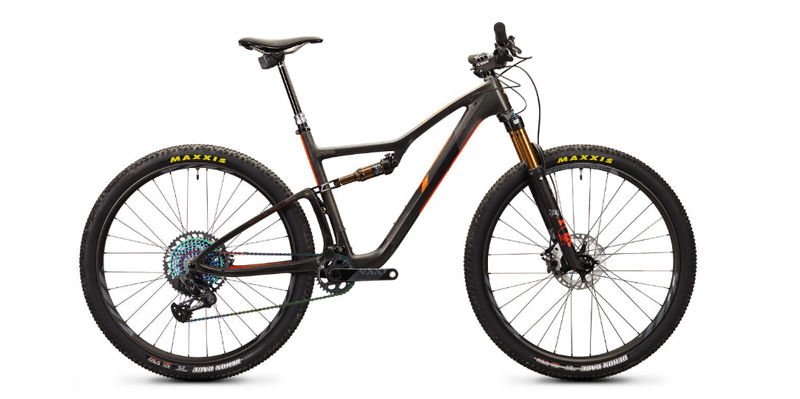

2022 Ibis Exie geometry
Full frame geometry for the 2022 Ibis Exie, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SMALL | 582 | 413 | 73.8 | 67.2 | 85 | 584 | 356 | 722 | 28 | 435 | 1128 | 110 |
| MEDIUM | 592 | 439 | 73.8 | 67.2 | 95 | 613 | 406 | 727 | 28 | 435 | 1158 | 110 |
| LARGE | 606 | 478 | 74.8 | 67.2 | 110 | 644 | 457 | 748 | 28 | 435 | 1202 | 110 |
| X-LARGE | 630 | 519 | 75.9 | 67.2 | 135 | 675 | 508 | 754 | 28 | 435 | 1253 | 110 |
All measurements in millimetres unless marked (°) for angles.
