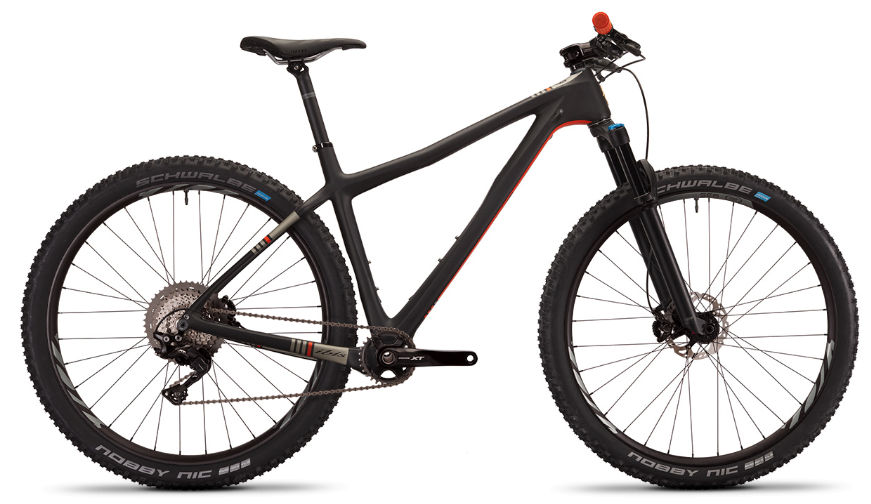

2018 Ibis DV9 geometry
Full frame geometry for the 2018 Ibis DV9, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S-100 | 611 | 397 | 73 | 68.5 | 92 | 582 | 368 | 687 | 439 | 1100 | 88 |
| S-120 | 620 | 384 | 72 | 67.4 | 92 | 582 | 368 | 697 | 439 | 1100 | 99 |
| M-100 | 628 | 418 | 73 | 68.5 | 110 | 607 | 432 | 757 | 439 | 1126 | 88 |
| L-100 | 634 | 435 | 73 | 68.5 | 116 | 628 | 482 | 757 | 439 | 1147 | 88 |
| M-120 | 637 | 405 | 72 | 67.4 | 110 | 607 | 432 | 767 | 439 | 1136 | 99 |
| L-120 | 643 | 422 | 72 | 67.4 | 116 | 628 | 482 | 767 | 439 | 1157 | 99 |
| XL-100 | 649 | 462 | 73 | 68.5 | 133 | 658 | 533 | 782 | 439 | 1182 | 88 |
| XL-120 | 658 | 449 | 72 | 67.4 | 133 | 658 | 533 | 792 | 439 | 1192 | 99 |
All measurements in millimetres unless marked (°) for angles.
