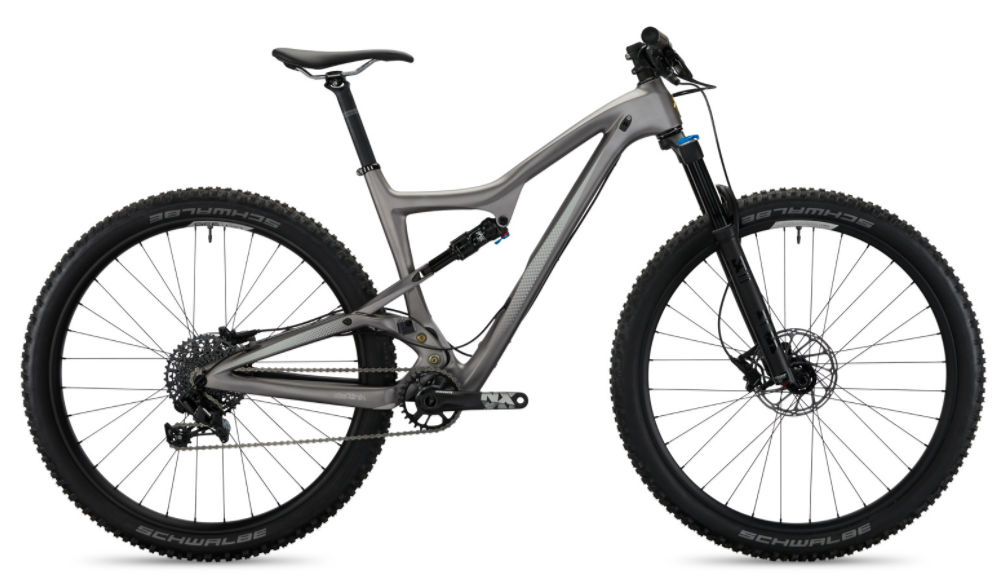

2018 Ibis Ripley 29 geometry
Full frame geometry for the 2018 Ibis Ripley 29, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 619 | 411 | 73 | 67.5 | 93 | 600 | 419 | 740 | 444 | 1140 | 97 |
| L | 625 | 428 | 73 | 67.5 | 102 | 619 | 470 | 740 | 444 | 1167 | 97 |
| XL | 632 | 448 | 73 | 67.5 | 107 | 640 | 521 | 750 | 444 | 1187 | 97 |
All measurements in millimetres unless marked (°) for angles.
