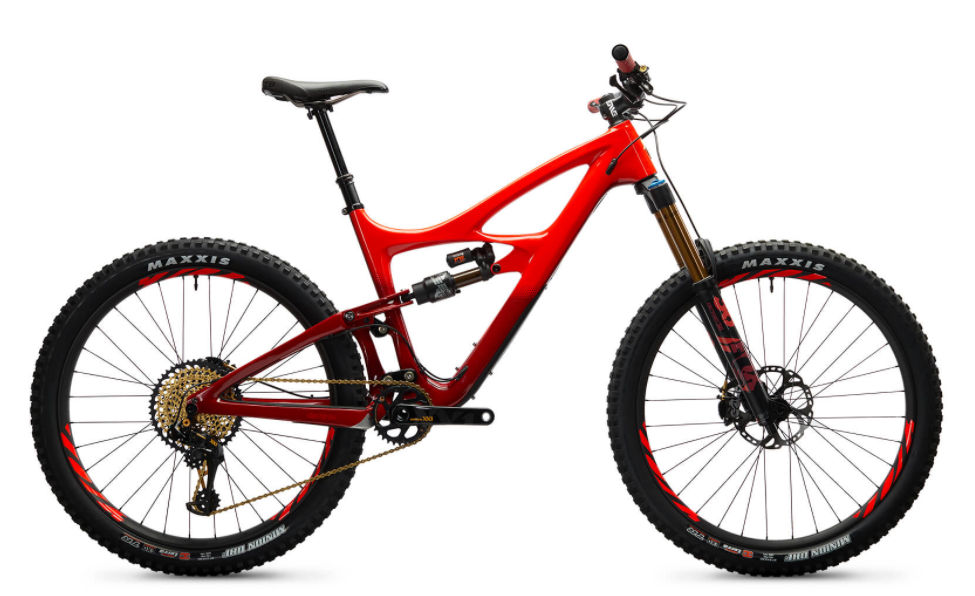

2018 Ibis Mojo HD4 geometry
Full frame geometry for the 2018 Ibis Mojo HD4, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 570 | 415 | 74 | 64.9 | 87 | 579 | 362 | 693 | 12 | 430 | 1163 | 118 |
| M | 590 | 435 | 74 | 64.9 | 109 | 604 | 393 | 715 | 12 | 430 | 1192 | 118 |
| L | 605 | 455 | 74 | 64.9 | 126 | 628 | 445 | 729 | 12 | 430 | 1219 | 118 |
| XL | 620 | 480 | 74 | 64.9 | 142 | 658 | 483 | 757 | 12 | 430 | 1251 | 118 |
All measurements in millimetres unless marked (°) for angles.
