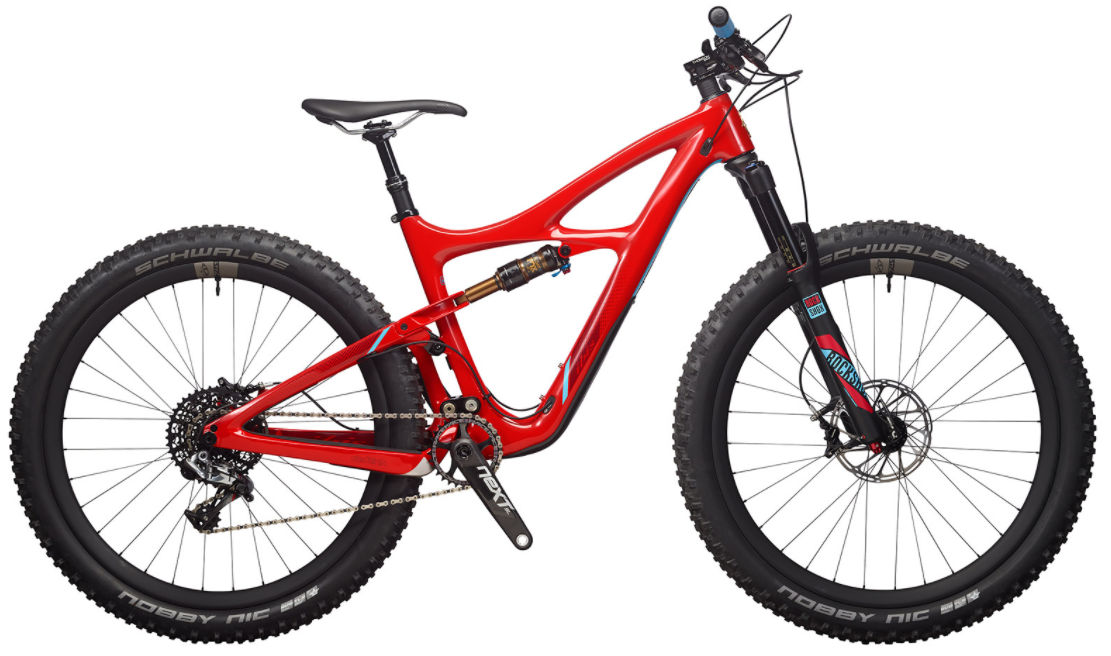

2018 Ibis Mojo 3 geometry
Full frame geometry for the 2018 Ibis Mojo 3, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 578 | 419 | 74.6 | 66.8 | 85 | 580 | 366 | 695 | 425 | 1126 | 106 |
| M | 592 | 423 | 73.6 | 66.8 | 105 | 600 | 419 | 719 | 425 | 1137 | 106 |
| L | 602 | 438 | 73.6 | 66.8 | 117 | 620 | 476 | 723 | 425 | 1158 | 106 |
| XL | 616 | 455 | 73.6 | 66.8 | 132 | 640 | 520 | 750 | 425 | 1180 | 106 |
All measurements in millimetres unless marked (°) for angles.
