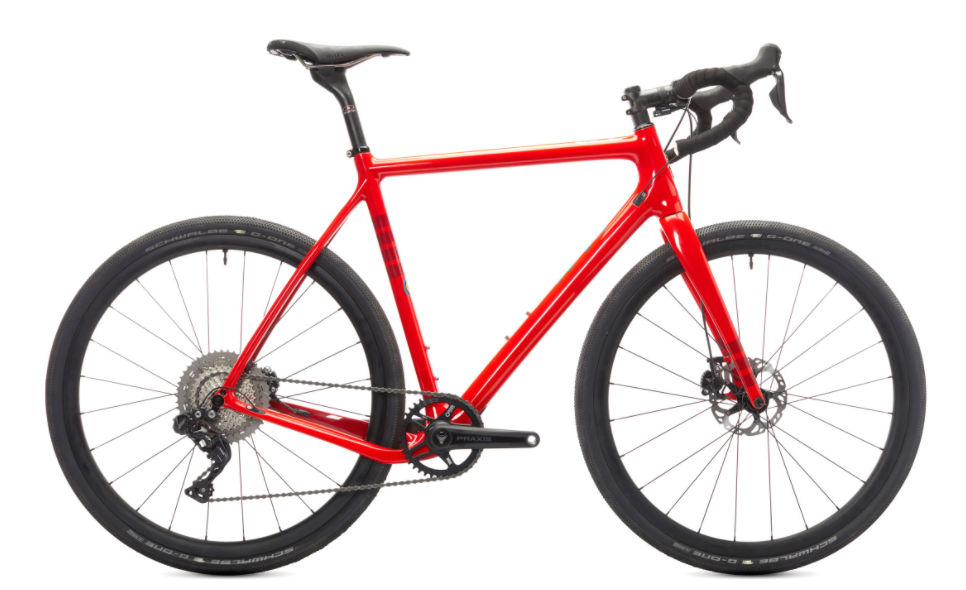

2018 Ibis Hakka MX geometry
Full frame geometry for the 2018 Ibis Hakka MX, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 49 | 532 | 370 | 74.5 | 70.5 | 110 | 520 | 455 | 729 | 70 | 430 | 1007 |
| 53 | 560 | 373 | 73.5 | 71.5 | 135 | 540 | 525 | 785 | 70 | 430 | 1011 |
| 55 | 580 | 382 | 73.5 | 72 | 155 | 550 | 550 | 802 | 70 | 430 | 1021 |
| 58 | 599 | 391 | 73.5 | 72 | 175 | 570 | 575 | 827 | 70 | 430 | 1037 |
| 61 | 616 | 406 | 73.5 | 72 | 195 | 590 | 605 | 853 | 70 | 430 | 1057 |
All measurements in millimetres unless marked (°) for angles.
