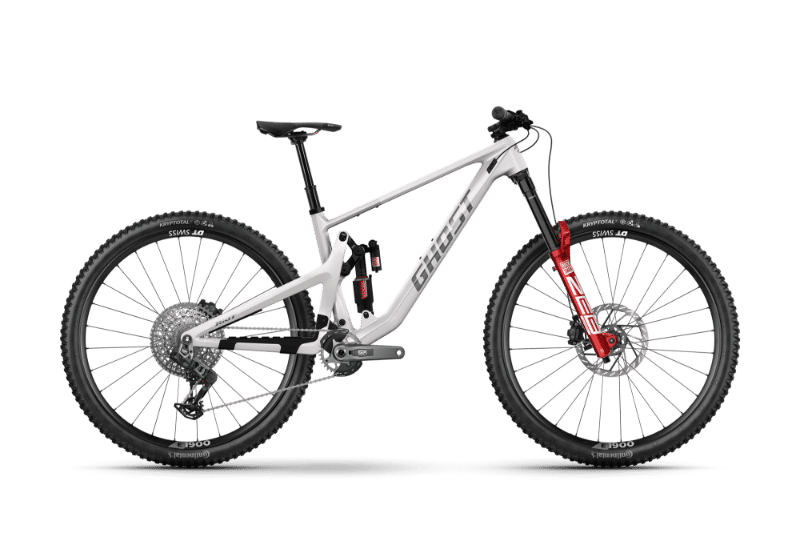

2026 Ghost Riot AM CF Full Party geometry
Full frame geometry for the 2026 Ghost Riot AM CF Full Party, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 607 | 435 | 76.5 | 63.5 | 90 | 581 | 417 | 746 | 34.2 | 446 | 1224 |
| M | 626 | 465 | 76.5 | 63.5 | 110 | 614.7 | 441 | 753 | 34.3 | 446 | 1263 |
| L | 648 | 492 | 76.5 | 63.5 | 140 | 646.7 | 465 | 778 | 29.5 | 455 | 1312 |
| XL | 666 | 522 | 76.5 | 63.5 | 160 | 680.9 | 489 | 796 | 29.6 | 455 | 1350 |
All measurements in millimetres unless marked (°) for angles.
