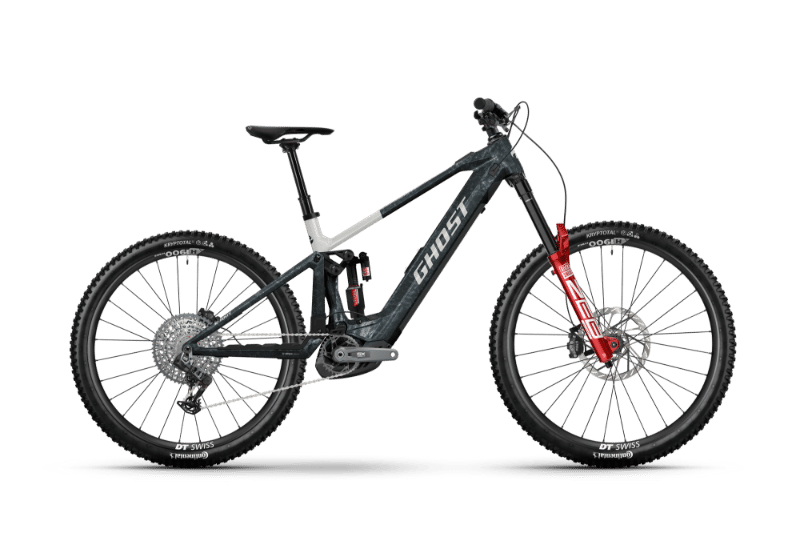

2026 Ghost E-Riot geometry
Full frame geometry for the 2026 Ghost E-Riot, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 618 | 435 | 77.5 | 64 | 98 | 572 | 384.5 | 764 | 10 | 445 | 1216 |
| M | 627 | 465 | 77.5 | 64 | 108 | 604 | 424.5 | 761 | 10 | 445 | 1250 |
| L | 638 | 490 | 77.5 | 64 | 115 | 632 | 464.5 | 760 | 10 | 445 | 1282 |
| XL | 654 | 515 | 77.5 | 64 | 130 | 660 | 504.5 | 760 | 10 | 445 | 1314 |
All measurements in millimetres unless marked (°) for angles.
