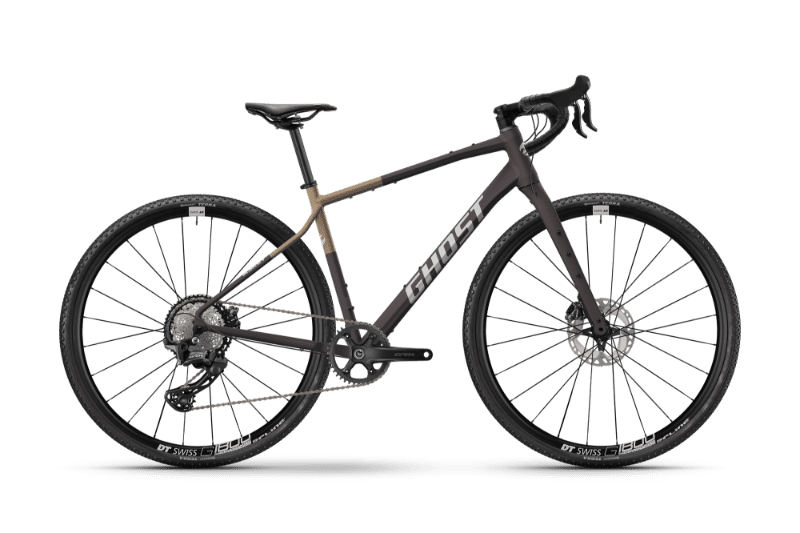

2026 Ghost Asket Advanced geometry
Full frame geometry for the 2026 Ghost Asket Advanced, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 558 | 373 | 73.8 | 69.5 | 100 | 535 | 410 | 680 | 71.6 | 440 | 1049 |
| S | 587 | 392 | 73.7 | 69.8 | 130 | 563 | 450 | 710 | 71.5 | 440 | 1076 |
| M | 612 | 407 | 73.7 | 70.1 | 160 | 586 | 485 | 750 | 66.5 | 440 | 1098 |
| L | 641 | 427 | 73.6 | 70.4 | 190 | 615 | 525 | 780 | 66.5 | 440 | 1126 |
| XL | 666 | 444 | 73.6 | 70.7 | 220 | 639 | 560 | 820 | 61.5 | 440 | 1150 |
All measurements in millimetres unless marked (°) for angles.
