2026 Ghost · G

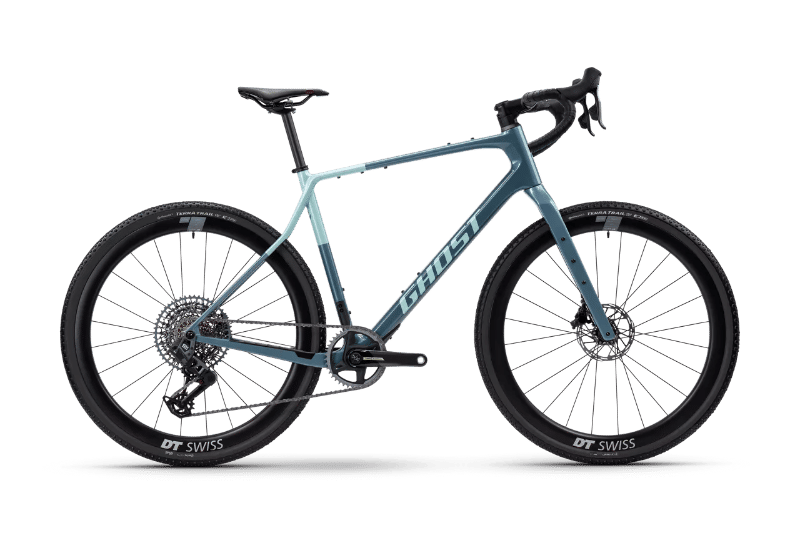

2026 Ghost Asket CF X geometry
Full frame geometry for the 2026 Ghost Asket CF X, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| XS | 542 | 375 | 74 | 69 | 95 | 526 | 440 | 62.5 | 430 | 1044 |
| S | 560 | 387 | 74 | 69 | 115 | 544 | 470 | 62.5 | 430 | 1063 |
| M | 581 | 400 | 74 | 69.5 | 135 | 564 | 500 | 62.5 | 435 | 1084 |
| L | 612 | 418 | 74 | 70 | 165 | 590 | 530 | 62.5 | 435 | 1107 |
| XL | 642 | 443 | 74 | 70.5 | 195 | 624 | 560 | 62.5 | 440 | 1142 |
All measurements in millimetres unless marked (°) for angles.
