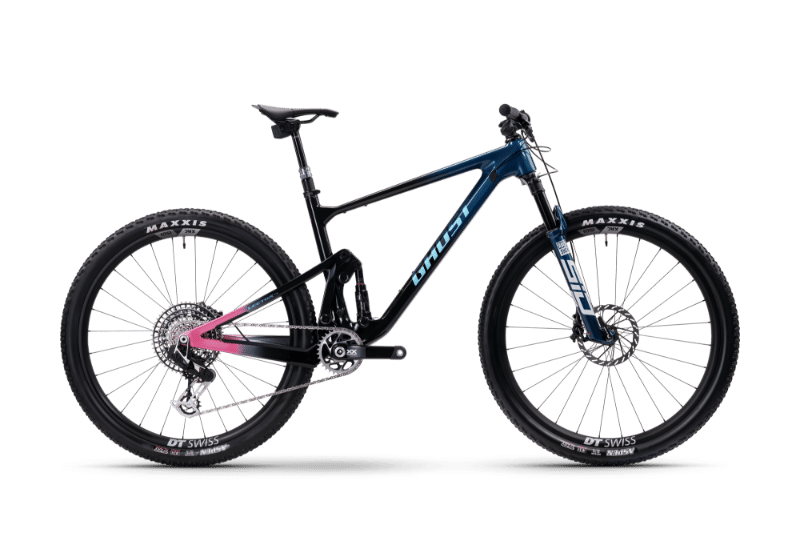

2026 Ghost Lector FS World Cup geometry
Full frame geometry for the 2026 Ghost Lector FS World Cup, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 581 | 418 | 74.9 | 67.4 | 90 | 575 | 417 | 715 | 40.6 | 435 | 1128 |
| S | 582 | 458 | 74.9 | 67.4 | 90 | 603 | 441 | 735 | 40.6 | 435 | 1168 |
| M | 601 | 489 | 75.5 | 68 | 100 | 649 | 465 | 760 | 32.6 | 440 | 1214 |
| L | 618 | 507 | 75.5 | 68 | 120 | 669 | 489 | 770 | 32.6 | 440 | 1241 |
| XL | 636 | 533 | 75.5 | 68 | 140 | 701 | 513 | 780 | 32.6 | 440 | 1275 |
All measurements in millimetres unless marked (°) for angles.
